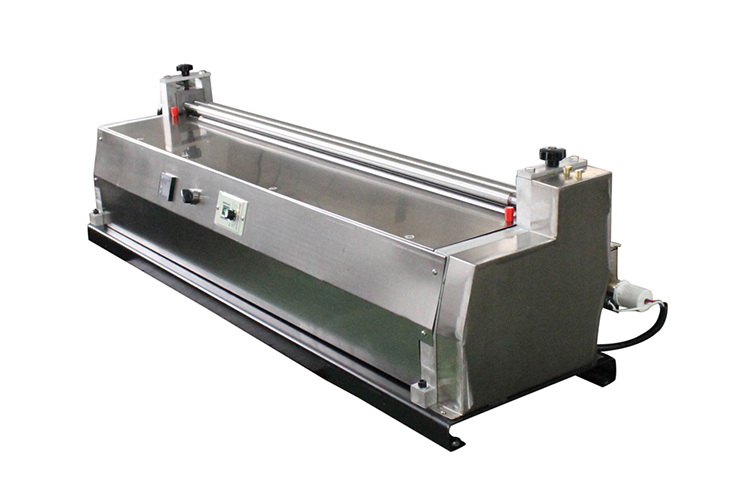

JS-E Series Hot melt Gluing Machine


Working principle

Roller immersion in the glue plate, when roller rotation, paper (or other material with smooth surface) feeding and coating at the same time, the glue evenly over the surface.The feeding speed could adjustment.

Video Link: https://youtu.be/7LBw7E29EkE


Usage:

JS-E series is under side hot melt gluing machine, it is adopting stainless steel, effective anti - glue corrosion.

It is mainly used for the gluing of different thickness of paper, paperboard, Special paper, Paper box, carton box, Corrugated box, note book making, paperboard puzzle, Instead of manual gluing, improve the efficiency of work.

The gluing machine is the special equipment or paper products to do gluing, which is widely used in printing and packaging, paper box, carton, book cover making and Fabric sample volume producing industry.

Specifications:

Model

Unit

JS-700E

JS-1000E

Gluing side



Under side

Under side

Max. Gluing width

mm

700

1000

Max. Gluing thickness

g/m

0-300

0-300

Paper  thickness

g

40-3000

40-3000

Materials thickness

mm

0.1-10

0.1-10

Speed

m/min

0-28

0-28

Motor power

w

150

370

Voltage

V/hz

220  60

220  60

Dimension (L×W×H)

mm

1030×450×500

1330×450×500

Package

mm

1080×530×550

1380×530×550

Net weight

kg

70

90

Gross weight

kg

80

100

Glue choice



Jelly glue (hot melt glue)

Paper feed



By hand

Cleaning way



By hand

Automatic degree



Semi-automatic
