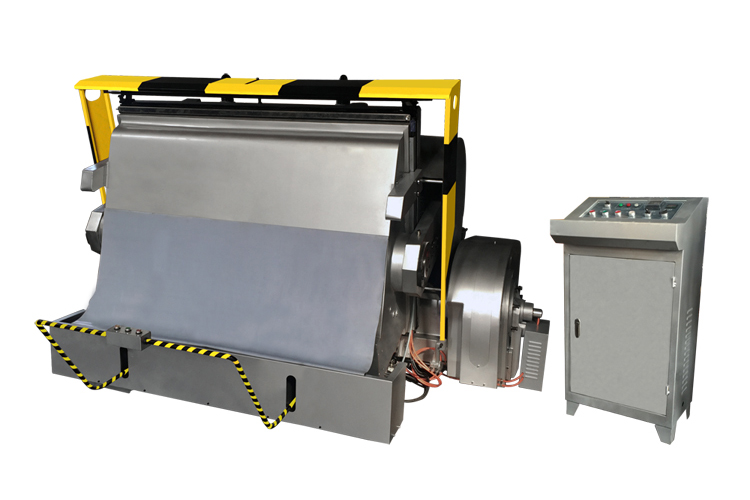

ML1600 Die Cutting and Creasing Machine

USAGE:

Creasing and Cutting Machine is a special equipment for creasing and cutting ordinary cardboard corrugated board plastic and leather in general, applicable to printing packaging decoration and plastic industries. Machine is characterized by compact structure, fine workmanship, big pressure, high precision and easy and reliable operation, etc.

FEATURES:

1.Sliding bearings are made of high quality alloy cooper, thus to get effect of anti-friction and shake reducing

2.Flywheel is with big moment of force and large pressure.

3.High strength due to one piece casting by using top-ranking material for machine body.

4.Single plate electromagnetic clutch is sensitive and reliable

5.With functions of single, continuous and opening dwell operation, dwell range is adjustable.

6.Operating position is reasonably arranged, moving-bed can be opened to its optimum.

7.Safety system is reliable.

8.Can equip inner and outer movable frame and central lubrication device.

NORMAL STANDARD CONFIGURATION:


CE AND HEATING STANDARD CONFIGURATION:


OPTIONAL:


SPECIFICATION:

MODEL

Unit

ML1600

ML1600CE

HML1600 HEATING

Platen Size

mm

1600*1250

Inside Chase Size

inch

62.9*49.2

Platen Size

inch

62.9*49.2

Max Cutting rule

m

50m

Impressions Per Min

times

13±2

Motor Power

kw

11kw

Heat Power

kw

*

*

16.8kw

Heat Group

groups

*

*

3 groups

Temperature: C(F)

*

*

0-170c(338F)

Heating speed

Min

*

*

About 20 min

N.T

kg

10000kg

10200kg

10200kg

G.T

kg

10200kg

10500kg

10500kg

Package size

mm

2700*2200*2250

Package

Wooden case with free fumigation

Voltage

220/380/415V 50/60Hz 3Phase
