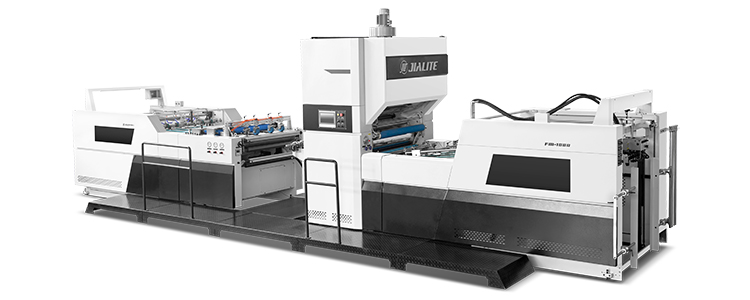

NFM-E1080 Automatic Laminating Machine with Chain Knife

FM-E fully Automatic Vertical High-precision and multi-duty laminator as a professional equipment used for plastic film laminating on the surface of paper printed matter. Widely applicable for laminating in packaging, paper box, books, magazines, calendars, and commercial cards fields, Improving the printing matter grades, and achieve the purpose of dustproof, waterproof, oil proof. it’s the best choice for printing and laminating enterprises of all scales. (FM-E is an upgraded version of FM-B)



FEEDING UNIT

1.4 suckers for lifting and 4 suckers for conveying structure. Max Speed 12000 sheets/h

2.The paper feeding table has upper and lower over-limit protection

3.The height of non-stop feeding can reach 1150mm, pre-stacking device, non-stop feeding



CONVEYING TABLE AND OVERLAP

1.The conveying table adopts customized stainless steel corrugated board

2.The brush wheel and rubber pressing wheel move smoothly

3.Servo motor overlap, improve accuracy of lap, error≤±2mm



LAMINATOR HOST

1.Glue roller and metering roller are driven by dual independent motors, making adjustment more convenient

2.Drying roller diameter increased to 800mm, using electromagnetic heating system.

3.The heating press roller adopts a segmented heating system, efficient and energy-saving

4.Max pressure of press roller is 12T

5.Gluing system Teflon process treatment, easy to clean and non-sticky



CUTTING UNIT

1.The paper cutter is equipped with a tension controller and an anti-curl device to ensure that the paper is flat and not curled.

2.The paper cutting part contains grinding wheel, disc knife and chain knife for slitting, meeting customers' requirements for slitting films of different materials

3.The bounce roller is controlled by an independent motor, and the paper can be separated by using the speed difference

4.PET film with adhesion strength and with higher anti-breaking performance than common film, chain knife easy to cutting the PET film, so favorable for post-processing, greatly reduces labor, time and abnormal waste, therefore reduces cost, it is a good helper for the paper cutter. The chain device controlled by servo motor independently, it is simple operation and maintenance.



NON-STOP COLLECTOR

1.Adopt pneumatic paper sorting structure to ensure the neatness of the paper and facilitate the next process

2.with a reduction wheel to prevent the paper from being damaged due to too fast hitting the baffle

3.Counting electric eye, the number of running paper is displayed on the display screen at the take-up machine, which can be cleared and accumulated

4.Induction electric eye, sensing the length of the paper, if the length of the paper changes, the belt will accelerate, and the baffle of the take-up machine will overturn and lift the paper



Model

型号

NFM-E

Max Paper Size

最大纸张尺寸

1080*1100mm

Min Paper Size

最小纸张尺寸

360*290mm

Speed

速度

10-100m/min

Paper Thickness

纸张厚度

80-500gsm(Above 100gsm easy to adjust, E type corrugated paper)

Overlap Precision

搭口误差

≤±2mm

Film Thickness (common micrometer)

无胶膜厚度

10/12/15

Common Glue Thickness

涂胶厚度

4-10g/m2

Pre-Glue Film Thickness

预涂膜规格

1005,1006,1206g/m2 (1508 1208 suit deep embossing paper)

Non-Stop Feeding Height

不停机送纸高度

1150mm

Collector Paper Height (incl. pallet)

不停机收纸高度(含托盘)

1050mm

Power

电压功率

380V-50Hz-3P

working Pressure

工作气压

15Mpa

Cable Thickness

电线粗细

25mm2

Weight

机器重量

8000kgs

Dimension (layout)

机器尺寸

8400*2200*2800mm

Loading

装柜

40HQ
