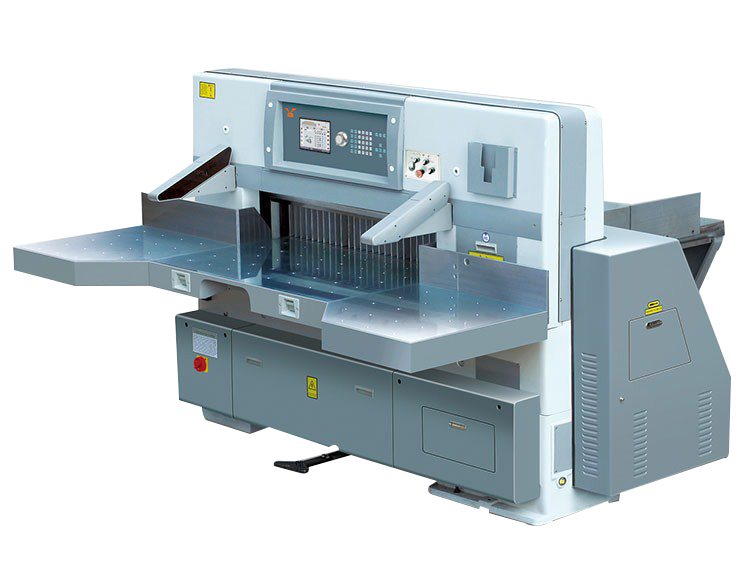

Double Hydraulic and Double Guide Series paper cutting machine:
QZYX1150
Digital Display Paper Cutter;
QZYK1150DW-7
Program Control Stepping Motor (Transducer) Paper Cutter;
QZYK1150D-8 Program
Control Servo Motor Paper Cutter;
QZYK1150D-10 Program
Control Servo Motor Paper Cutter;
QZYK1150DH-10
Touch Screen Paper Cutter;
QZYK1150DH-15 Touch
Screen Paper Cutter;
1150
Double Warm Wheel and Double Guide Series paper cutting machine:
SQZK1150
Program Control (Transducer) Paper Cutter;
SQZK1150D-8 Program
Control (Servo Motor) Paper Cutter;
SQZK1150D-10
Program Control (Servo Motor) Paper Cutter;
SQZK1150DH-10
Touch Screen Paper Cutter;
SQZK1150DH-15
Touch Screen Paper Cutter;
Usage and function:
S series
of machine double worm wheel double guide machine with slot less worktable. In
order to ensure the position precision of high-ball screw, linear guide and slot
less structure use the hydraulic drive. And the pressure can be adjusted in the
pressure scope. For the friction clutch the machine is installed with many safe
devices such as overload protection, Photo cell electronic, Knife lock and
operating by double hands for all the devices, the machine has the features of
big cutting pressure, high cutting precision, easy to operate and solidity. It
can be applied to cut hard paper such as honey-comb paper hectograph paper and
PC plate.
Y series of machine adopts whole slot less worktable surrounded by double guide
paper sending system. For this system, paper sending speed is high and paper
sender posit precisely controlled through hydraulic system, which make the
pressure can be adjusted bigger. The paper -pressing pressure can be adjusted
from 200N to 55000N, which ensure the cutting quality. The cutting is operated
by double hands. And the machine is installed with safe devices such as photo
cell, electronic knife lock and single recycle cutting, it has features of low
noise large cutting power, high precision customer can choose to equip the
machine with the electric components imported from France, Germany and Japan, High
speed ball screw of Taiwan and the hydraulic system European safety
certificate.
1150 series technical data
Model |
unit |
Y1150D |
S1150D |
Total
width of machine |
cm |
267 |
317 |
Half
width of machine body |
cm |
97 |
122 |
The
thickness of machine´s surgade |
cm |
20 |
30 |
Total
with of machine body |
cm |
217 |
245 |
Total
length of machine |
cm |
261 |
261 |
The
length from cutting position to the front table |
cm |
73 |
73 |
the
height from working table to ground |
cm |
89 |
90 |
Total
height of machine |
cm |
165 |
174 |
Max.
cutting length |
cm |
116 |
116 |
The
length from cutting position to back table |
cm |
166 |
166 |
The
length of side table |
cm |
65 |
70 |
The
length of machine cushion |
cm |
70 |
100 |
The
width of working table |
cm |
115 |
115 |
The
width of groundsill of machine foot |
cm |
60 |
60 |
Max
cutting width |
cm/lnch |
115/45.3 |
115/45.3 |
Max.
cutting length |
cm/lnch |
116/45.7 |
116/45.7 |
Max
cutting height |
cm/lnch |
16.5/6.5 |
16.5/6.5 |
Main
motor power |
KW |
4 |
4 |
Weight |
KG |
4000 |
4500 |
Width
of machine(With sideway) |
cm |
267 |
317 |
Width of machine(without
sideway) |
cm |
237 |
281 |
Machine
Length |
cm |
261 |
261 |
Machine
Height |
cm |
165 |
174 |
Front
table length |
cm |
73 |
73 |
Table
length |
cm |
89 |
90 |
Clamp
pressure(Min) |
N |
200 |
200 |
Clamp pressure(Max) |
N |
40000 |
40000 |
Knife
thickness |
cm |
139×16×1.37 |
139×16×1.37 |
Grinding
reserve |
cm |
6 |
6 |
Smallest
cut(Without
false clamp) |
cm/lnch |
3/1.2 |
3/1.2 |
Smallest cut(With false clamp |
cm/lnch |
10/3.9 |
10/3.9 |
Cutting
speed |
Cycles/min |
45 |
45 |
Packing
size (L×W×H) |
cm |
260×157×200 |
301×157×204 |
Voltage(three-phase) |
V |
365-395 |
365-395 |
Wire
size |
mm2 |
2.5 |
4 |
Machine Parameters:
MODEL |
QZYX1150D |
QZYK1150DW-7 |
SQZK1150DW-7 |
QZYK1150D-8 |
SQZK1150D-8 |
QZYK1150D-10 |
SQZK1150D-10 |
QZYK1150DH-10 |
SQZK1150DH-10 |
QZYK1150DH-15 |
SQZK1150DH-15 |
Cutting width |
115 CM |
115 CM |
115 CM |
115 CM |
115 CM |
115 CM |
115 CM |
115 CM |
115 CM |
115 CM |
115 CM |

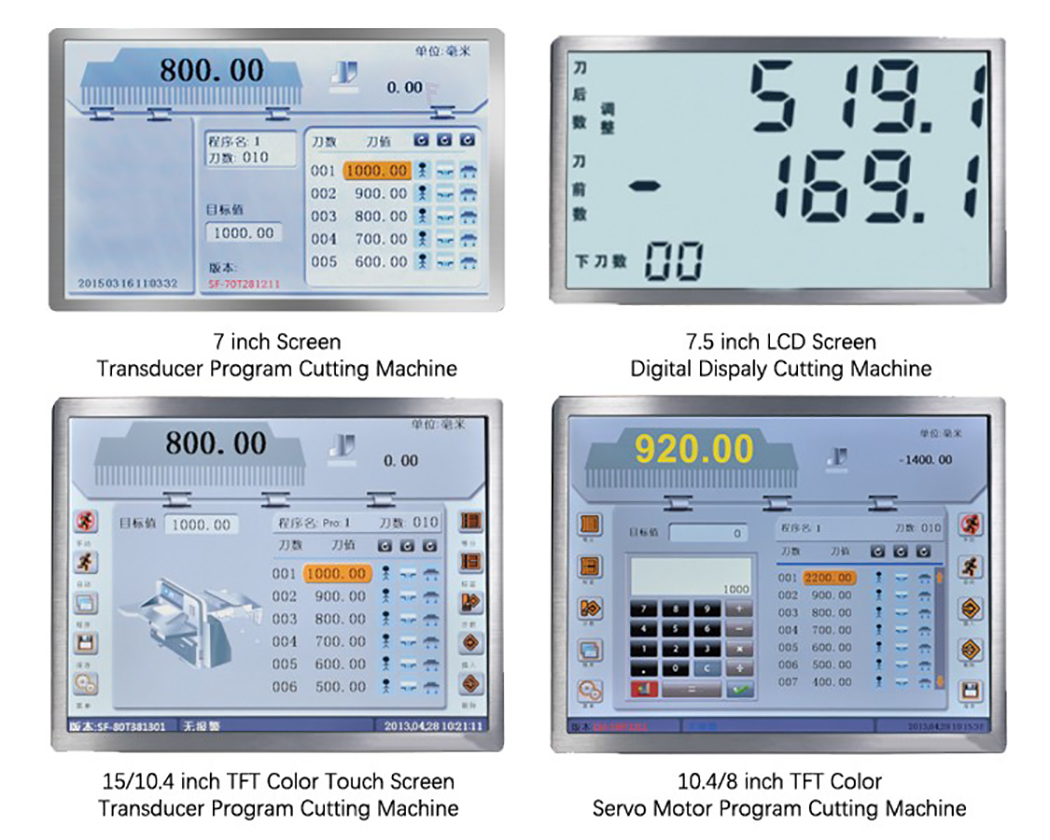

screen size |
7" |
7" |
7" |
8" |
8" |
10.4" |
10.4" |
10.4" |
10.4" |
15" |
15" |
Touch function |
- |
- |
- |
- |
- |
- |
- |
★ |
★ |
★ |
★ |
Automated functional |
manual |
automatic |
automatic |
automatic |
automatic |
automatic |
automatic |
automatic |
automatic |
automatic |
automatic |
Storage capacity (team) |
- |
500 |
500 |
2000 |
2000 |
2000 |
2000 |
5000 |
5000 |
5000 |
5000 |
each team of Program
capacity |
- |
999 |
999 |
999 |
999 |
999 |
999 |
999 |
999 |
999 |
999 |
Sending speed |
6-12 m/min |
6-12 m/min |
6-12 m/min |
6-18 m/min |
6-18 m/min |
6-18 m/min |
6-18 m/min |
6-18 m/min |
6-18 m/min |
6-18 m/min |
6-18 m/min |
double guide and ball screw |
★ |
★ |
★ |
★ |
★ |
★ |
★ |
★ |
★ |
★ |
★ |
Chrome plated worktable |
★ |
★ |
★ |
★ |
★ |
★ |
★ |
★ |
★ |
★ |
★ |
Increase additional
platforms |
optional |
optional |
★ |
optional |
★ |
optional |
★ |
optional |
★ |
optional |
★ |
Double worm
wheel drive |
★ |
★ |
★ |
★ |
★ |
||||||
Double hydraulic drive |
★ |
★ |
★ |
★ |
★ |
★ |
|||||
HSS Knife |
optional |
optional |
optional |
optional |
optional |
optional |
optional |
optional |
optional |
optional |
optional |
Electromagnetic knife lock |
★ |
★ |
★ |
★ |
★ |
★ |
★ |
★ |
★ |
★ |
★ |
Self diagnosis system |
- |
★ |
★ |
★ |
★ |
★ |
★ |
★ |
★ |
★ |
★ |
After the table Safety
housings |
optional |
optional |
optional |
optional |
optional |
optional |
optional |
optional |
optional |
optional |
optional |
Foot stepped on pressure |
★ |
★ |
★ |
★ |
★ |
★ |
★ |
★ |
★ |
★ |
★ |
Configuration list:
|
|
QZYX1150D |
QZYK1150DW-7,SQZK1150DW-7 |
QZYK1150D-8,SQZK1150D-8 |
QZYK1150D-10,SQZK1150D-10 |
QZYK1150DH-10,SQZK1150DH-10 |
QZYK1150DH-15,SQZK1150DH-15 |
||||||
NO. |
Configuration |
Brand |
Model |
Brand |
Model |
Brand |
Model |
Brand |
Model |
Brand |
Model |
Brand |
Model |
Display screen |
blue LCD |
China |
LCD RAIO |
Hong Kong |
TFT LCD AU |
Taiwan |
TFT LCD AU |
Taiwan |
TFT Touch LCD AU |
Taiwan |
TFT Touch LCD AU |
Taiwan |
|
Motherboard chipset |
single chip Microcomputer |
Shanghai |
NXP |
Taiwan |
AMD |
America |
AMD |
America |
AMD |
America |
AMD |
America |
|
Computer |
-------- |
-------- |
MOVESUN |
shanghai |
MOVESUN |
shanghai |
MOVESUN |
shanghai |
MOVESUN |
shanghai |
MOVESUN |
shanghai |
|
Positioning motor |
LB Motor |
China |
Delta Variable-frequency
Drive |
Taiwan |
TECO SERVO MOTOR |
Taiwan |
TECO SERVO MOTOR |
Taiwan |
TECO SERVO MOTOR |
Taiwan |
TECO SERVO MOTOR |
Taiwan |
|
Cast |
HT250 |
HUNAN |
HT250 |
HUNAN |
HT250 |
HUNAN |
HT250 |
HUNAN |
HT250 |
HUNAN |
HT250 |
HUNAN |
|
Feed screw |
TBI |
Taiwan |
TBI |
Taiwan |
TBI |
Taiwan |
TBI |
Taiwan |
TBI |
Taiwan |
TBI |
Taiwan |
|
Guide |
TBI |
Taiwan |
TBI |
Taiwan |
TBI |
Taiwan |
TBI |
Taiwan |
TBI |
Taiwan |
TBI |
Taiwan |
|
Worktable |
HT250 |
HUNAN |
HT250 |
HUNAN |
HT250 |
HUNAN |
HT250 |
HUNAN |
HT250 |
HUNAN |
HT250 |
HUNAN |
|
Bearing |
NSK |
Japan |
NSK |
Japan |
NSK |
Japan |
NSK |
Japan |
NSK |
Japan |
NSK |
Japan |
|
Triangle belt |
Jinhuli |
China |
Jinhuli |
China |
Jinhuli |
China |
Jinhuli |
China |
Jinhuli |
China |
Jinhuli |
China |
|
Switch |
By mowller |
Germany |
By mowller |
Germany |
By mowller |
Germany |
By mowller |
Germany |
By mowller |
Germany |
By mowller |
Germany |
|
The switch power |
Schneider |
French |
Schneider |
French |
Schneider |
French |
Schneider |
French |
Schneider |
French |
Schneider |
French |
|
Locating switch |
panasonic |
Japan |
panasonic |
Japan |
panasonic |
Japan |
panasonic |
Japan |
panasonic |
Japan |
panasonic |
Japan |
|
Electrical |
Schneider |
French |
Schneider |
French |
Schneider |
French |
Schneider |
French |
Schneider |
French |
Schneider |
French |
|
Encoder |
----- |
------ |
REP |
China |
REP |
China |
REP |
China |
REP |
China |
REP |
China |
|
Electromagnetic valve |
jinggong |
China |
jinggong |
China |
jinggong |
China |
jinggong |
China |
jinggong |
China |
jinggong |
China |
|
Sealing ring |
NOK |
JAPAN |
NOK |
JAPAN |
NOK |
JAPAN |
NOK |
JAPAN |
NOK |
JAPAN |
NOK |
JAPAN |
|
Hydraulic pump |
Yong ling |
china |
Yong ling |
china |
Yong ling |
china |
Yong ling |
china |
Yong ling |
china |
Yong ling |
china |
|
Knife |
HSS knife |
Japan |
HSS knife |
Japan |
HSS knife |
Japan |
HSS knife |
Japan |
HSS knife |
Japan |
HSS knife |
Japan |
|
The main motor |
LB |
China |
LB |
China |
LB |
China |
LB |
China |
LB |
China |
LB |
China |
|
Photo cell |
ZH |
Shanghai |
ZH |
Shanghai |
ZH |
Shanghai |
ZH |
Shanghai |
ZH |
Shanghai |
ZH |
Shangha |
