TJ-40 Box Corner Pasting machine

Usage:

1.This machine is used for rigid box, inside box, using high temperature adhesive tape to save the cost.

2.Its product has correct angle, beautiful appearance, quick speed and favorable price.

3.It is the perfect equipment for box making.

Process:



Features:

1. Motorized single arm press device, equipped with temperature controller

2. Turned over box by hand, workable for various kinds of boxes

3. Environmental hot-melt tape is used to paste corner.

Specification:

Min. Size of box(L*W)

40*40mm

Height of box

10~300mm

Normal glue tape width

19mm

Production speed

10-50units/min

Temperature

0-300℃

Motor power

0.5kw/220v

Heater power

0.3kw

Machine weight

150kg

Machine dimension

L800*W450*H1500mm

Package

L1000*W500*H1600mm

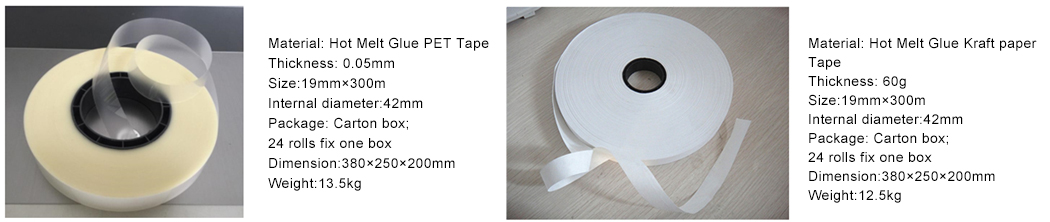

Tape choice

White Kraft paper tape, PET paper

Remarks

The tape width 60mm could customized

Material:

Warranty Service:

Machines are new (or unused) and the guarantee period will be given thirteen months from shipment date. During this period, the seller will provide free maintenance and free spare parts that caused by the machine’s quality, but the buyer must pay the courier cost. Parts damaged because of mishandling and consumable parts are not covered by any warranty.
