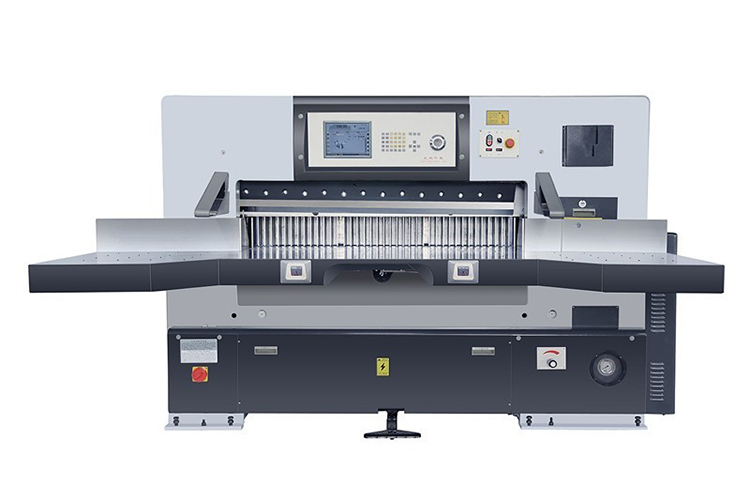

1620 Series Paper Cutting Machine

USAGE AND FUNCTION
Y series of machine adopts whole slot-less worktable surrounded by double guide paper sending system. For this system, paper sending speed is high and paper sender posit precisely. Controlled through hydraulic system which make the pressure can be adjusted bigger. The paper -pressing pressure can be adjusted from 200N to 55000N, which ensure the cutting quality. The cutting is operated by double hands. And the machine is installed with safe devices such as photo cell, electronic knife lock and single recycle cutting it has features of low noise large cutting power, high precision Customer can choose to equip the machine withthe electric components imported from France Germany japan high speed ball screw of Taiwan and the hydraulic system European safety certificate.



PRODUCT DESCRIPTION

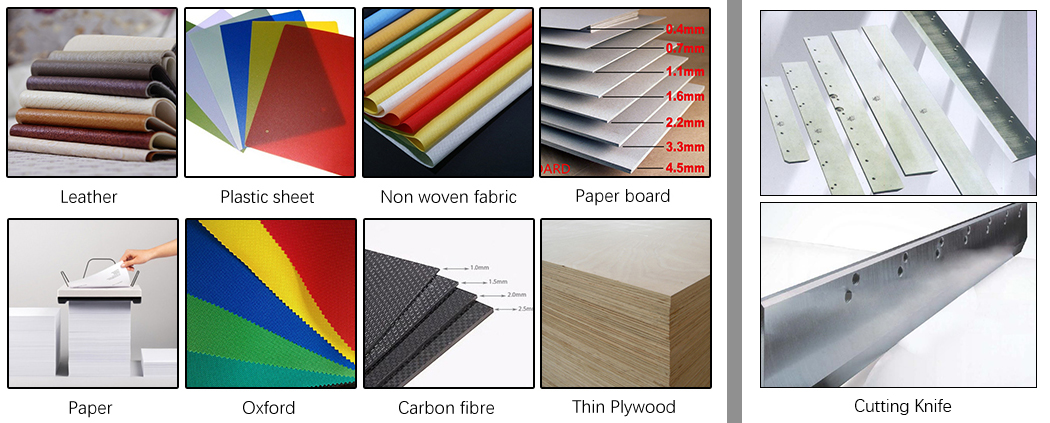

1.USAGE: Program Control Paper Cutting Machine is used to cut the printing paper of various kinds, paper products, plastic, thin film, leather, slice of non-ferrous metal, etc.

2.COMPUTER: it adopts 8 inch color liquid crystal display screen,2000 groups programming capacity, each of them can store 999 cuttings' datum of different locations;0.01 mm position accuracy; six kinds of language; the working speed is 6-18m/min.

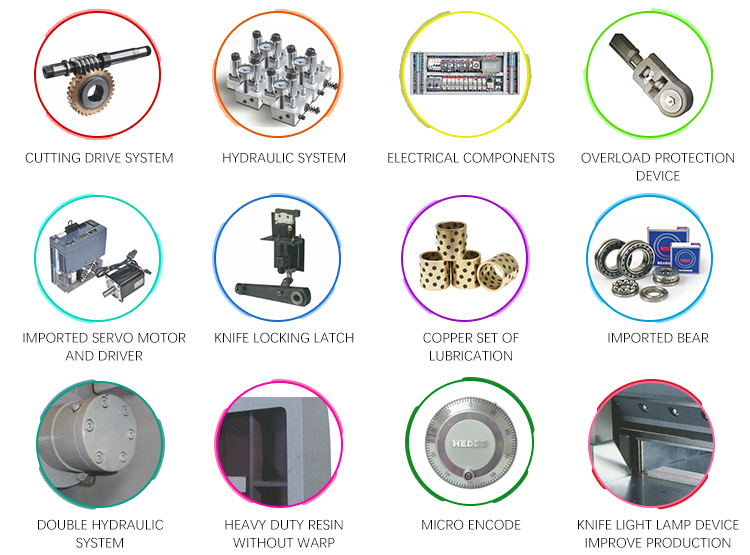

3.DOUBLE HYDRAULIC DEVICE: the hydraulic system adopts the Germany advanced technology. Equipped with combined hydraulic valve, double hydraulic controlling structure, it approves hydraulic device greatly. The hydraulic device pass CE certificate.

4.DOUBLE GUIDE DEVICE: the paper pusher adopts double imported linear guide and roller ball screw, which can prolong the machine use life, and can bear the high speed paper delivering.

5. PHOTO CELL: it is equipped with a photo cell safety protection device.

6.OVER LOAD PROTECTION DEVICE: convenient knife changing device.

7.WORKTABLE CHROME TREATMENT: the worktable and side board surface are all adopted chrome treatment to improve the precision and quality of the machine.

8.AIR BALL: air balls are installed in the worktable. The paper sending work will be easy and accurate.

9.CUTTING CONTROLLER: both of the user’s hands operate the machine. It can cut paper in one time.

10. ELECTRONIC KNIFE LOCK: when the machine is malfunction, the electronic knife lock will lock the knife, and the machine will stop cutting to protect safety.

11.SAFETY NOTICE & GLASS COVERS: the machine has passed CE certificate. All the safety notice and direction mark is used to cause the safety attention of the user, and do protection and maintenance in time.(optional)

12.MAIN ELECTRIC DEVICE ARE IMPORTED FROM GERMANY, FRENCH, JAPAN, ETC.


1620 SERIES TECHNICAL DATA

Model

unit

Y1620D

Total width of machine

cm

296

Half width of machine body

cm

124

The thickness of machine´s surgade

cm

30

Total width of machine body

cm

269

Total length of machine

cm

315

The length from cutting position to the front table

cm

73

the height from working table to ground

cm

90

Total height of machine

cm

167

Max. cutting length

cm

165

The length from cutting position to back table

cm

220

The length of side table

cm

65

The length of machine cushion

cm

70

The width of working table

cm

162

The width of groundsill of machine foot

cm

60

Max cutting width

cm/lnch

162/63.8

Max. cutting length

cm/lnch

165/65.0

Max cutting height

cm/lnch

16.5/6.5

Main motor power

kw

5.5

Weight

kg

5500

Width of machine with sideway

cm

296

Width of machine without sideway

cm

301

Machine Length

cm

315

Machine Height

cm

167

Front table length

cm

73

Table length

cm

90

Min Clamp pressure

N

200

Max Clamp pressure

N

55000

Knife thickness

cm

183×16×1.37

Grinding reserve

cm

6

Smallest cut without false clamp

cm/lnch

3.5/1.4

Smallest cut with false clamp

cm/lnch

11/4.3

Cutting speed

cycles\min

45

Packing size (L×W×H)

cm

343×157×220

Voltage(three-phase)

V

365-395

Wire size

mm2

4
