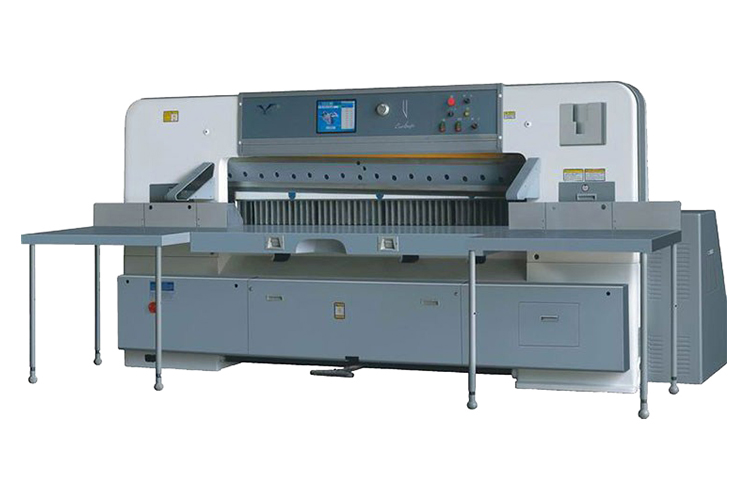

Paper Cutting Machine

USAGE AND FUNCTION

S series of machine double worm wheel double guide machine with slot less worktable. In order to ensure the position precision of high-ball screw, linear guide and slot less structure use the hydraulic drive. And the pressure can be adjusted in the pressure scope. For the friction clutch the machine is installed with many safe devices such as overload protection, Photo cell electronic, Knife lock and operating by double hands for all the devices, the machine has the features of big cutting pressure, high cutting precision, easy to operate and solidity. It can be applied to cut hard paper such as honey-comb paper hectograph paper and PC plate.

PRODUCT DESCRIPTION

1.USAGE: Program Control Paper Cutting Machine is used to cut the printing paper of various kinds, paper products, plastic, thin film, leather, slice of non-ferrous metal, etc.

2.COMPUTER: it adopts 8 inch color liquid crystal display screen,2000 groups programming capacity, each of them can store 999 cuttings' datum of different locations;0.01 mm position accuracy; six kinds of language; the working speed is 6-18m/min.

3.DOUBLE WORM WHEEL DEVICE: the Worm wheel system adopts the Germany advanced technology. It pass the patent No: ZL 2007 2 0192036. X. This structure is new in the paper cutting machine market. In china, only our machine’s double worm wheel structure passed the patent. This structure pulls the knife seat fall down from double side. In this way, the cutting will have heavier power and more precise.

4.DOUBLE GUIDE DEVICE: the paper pusher adopts double imported linear guide and roller ball screw, which can prolong the machine use life, and can bear the high speed paper delivering.

5. PHOTO CELL: it is equipped with a photo cell safety protection device.

6.OVER LOAD PROTECTION DEVICE: convenient knife changing device.

7.WORKTABLE CHROME TREATMENT: the worktable and side board surface are all adopted chrome treatment to improve the precision and quality of the machine.

8.AIR BALL: air balls are installed in the worktable. The paper sending work will be easy and accurate.

9.CUTTING CONTROLLER: both of the user’s hands operate the machine. It can cut paper in one time.

10. ELECTRONIC KNIFE LOCK: when the machine is malfunction, the electronic knife lock will lock the knife, and the machine will stop cutting to protect safety.

11.SAFETY NOTICE & GLASS COVERS: the machine has passed CE certificate. All the safety notice and direction mark is used to cause the safety attention of the user, and do protection and maintenance in time.(optional)

12.MAIN ELECTRIC DEVICE ARE IMPORTED FROM GERMANY, FRENCH, JAPAN, ETC.

1850 SERIES TECHNICAL DATA

Model	unit	S1850D
Total width of machine	cm	394
Half width of machine body	cm	174
The thickness of machine´s surgade	cm	35
Total width of machine body	cm	339
Total length of machine	cm	350
The length from cutting position to the front table	cm	75
the height from working table to ground	cm	93
Total height of machine	cm	177
Max. cutting length	cm	195
The length from cutting position to back table	cm	253
The length of side table	cm	70
The length of machine cushion	cm	100
The width of working table	cm	185
The width of groundsill of machine foot	cm	60
Max cutting width	cm/lnch	185/72.8
Max. cutting length	cm/lnch	195/76.8
Max cutting height	cm/lnch	16.5/6.5
Main motor power	Kw	7.5
Weight	kg	8500
Width of machine with sideway	cm	394
Width of machine without sideway	cm	375
Machine Length	cm	350
Machine Height	cm	177
Front table length	cm	75
Table length	cm	93
Min Clamp pressure	N	200
Max Clamp pressure	N	60000
Knife thickness	cm	203×16×1.37
Grinding reserve	cm	6
Smallest cut without false clamp	cm/lnch	3.5/1.4
Smallest cut with false clamp	cm/lnch	11/4.3
Cutting speed	cycles\min	45
Packing size (L×W×H)	cm	403×206×240
Voltage(three-phase)	V	365-395
Wire size	mm2	4
