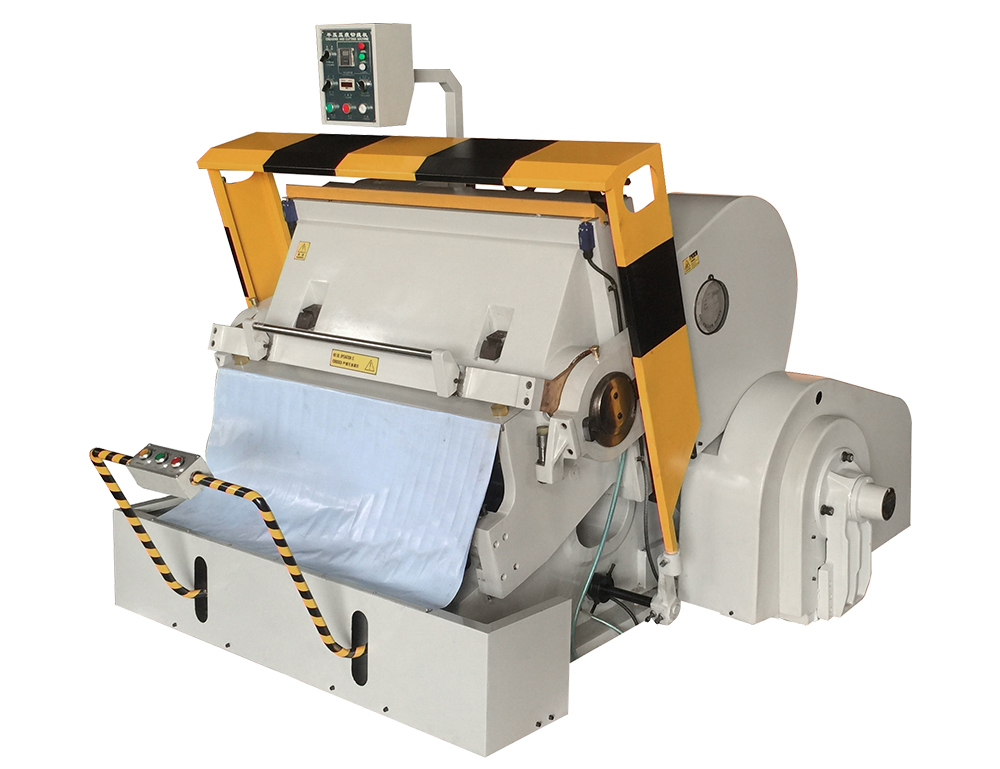

ML1040 Die Cutting and Creasing Machine
  Prve:ML1400 Die Cutting and Creasing Machine

USAGE:

Creasing and Cutting Machine is a special equipment for creasing and cutting ordinary cardboard corrugated board plastic and leather in general, applicable to printing packaging decoration and plastic industries. Machine is characterized by compact structure, fine workmanship, big pressure, high precision and easy and reliable operation, etc.

FEATURES:

1.Sliding bearings are made of high quality alloy cooper, thus to get effect of anti-friction and shake reducing

2.Flywheel is with big moment of force and large pressure.

3.High strength due to one piece casting by using top-ranking material for machine body.

4.Single plate electromagnetic clutch is sensitive and reliable

5.With functions of single, continuous and opening dwell operation, dwell range is adjustable.

6.Operating position is reasonably arranged, moving-bed can be opened to its optimum.

7.Safety system is reliable.

8.Can equip inner and outer movable frame and central lubrication device.

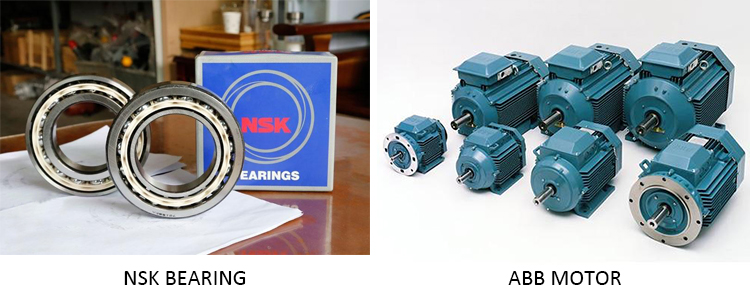

NORMAL STANDARD CONFIGURATION:


CE AND HEATING STANDARD CONFIGURATION:


OPTIONAL:


SPECIFICATION:

MODEL

Unit

ML1040

ML1040CE

HML1040 HEATING

Platen Size

mm

1040*720

Inside Chase Size

inch

40.9*28.3

Platen Size

inch

40.9*28.3

Max Cutting rule

m

30m

Impressions Per Min

times

21±2

Motor Power

kw

4kw

Heat Power

kw

*

*

12kw

Heat Group

groups

*

*

3 groups

Temperature: C(F)

*

*

0-170c(338F)

Heating speed

Min

*

*

About 20 min

N.T

kg

3400kg

3500kg

3500kg

G.T

kg

3500kg

3600kg

3600kg

Package size

mm

1600*1820*1600

Package

Wooden case with free fumigation

Voltage

220/380/415V 50/60Hz 3Phase
