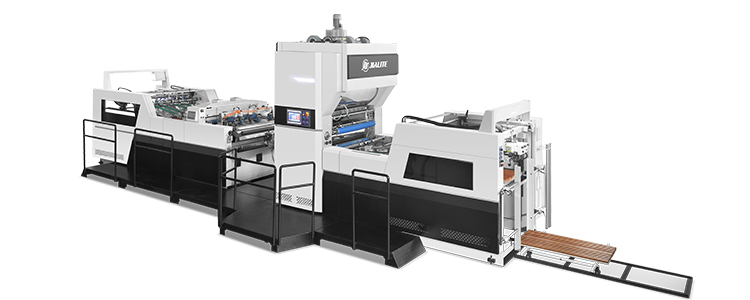

NFM-H fully Automatic Vertical High-precision and multi-duty laminator as a professional equipment used for plastic film laminating on the surface of paper printed matter. Widely applicable for laminating in packaging, paper box, books, magazines, calendars, and commercial cards fields, Improving the printing matter grades, and achieve the purpose of dustproof, waterproof, oil proof. it’s the best choice for printing and laminating enterprises of all scales.

FEEDING UNIT

1.4 suckers for lifting and 4 suckers for conveying structure. Max Speed 12000 sheets/h

2.The paper feeding table has upper and lower over-limit protection

3.The height of non-stop feeding can reach 1150mm, pre-stacking device, non-stop feeding

CONVEYING TABLE AND OVERLAP

1.The conveying table adopts customized stainless steel corrugated board

2.The brush wheel and rubber pressing wheel move smoothly

3.Servo motor overlap, improve accuracy of lap, error≤±2mm

LAMINATOR HOST

1.Glue roller and metering roller are driven by dual independent motors, making adjustment more convenient

2.Drying roller diameter increased to 1000mm, using electromagnetic heating system.

3.The heating press roller adopts double eletromagnetic heating system, heating up and cooling down fast, temperature stability, heating steel roller using built-in temperature measuring device, more accurate temperature measurement.

4.Max pressure of press roller is 12T

5.Gluing system Teflon process treatment, easy to clean and non-sticky

CUTTING UNIT

1.The paper cutter is equipped with a tension controller and an anti-curl device to ensure that the paper is flat and not curled.

2.The paper cutting part contains grinding wheel, disc knife and chain knife for slitting, meeting customers' requirements for slitting films of different materials

3.The bounce roller is controlled by an independent motor, and the paper can be separated by using the speed difference

4.Hot knife low pressure direct heating and slitting without tail film, detecting paper thickness and slitting, accurate and efficient

NON-STOP COLLECTOR

1.Adopt pneumatic paper sorting structure to ensure the neatness of the paper and facilitate the next process

2.with a reduction wheel to prevent the paper from being damaged due to too fast hitting the baffle

3.Counting electric eye, the number of running paper is displayed on the display screen at the take-up machine, which can be cleared and accumulated

4.Induction electric eye, sensing the length of the paper, if the length of the paper changes, the belt will accelerate, and the baffle of the take-up machine will overturn and lift the paper
