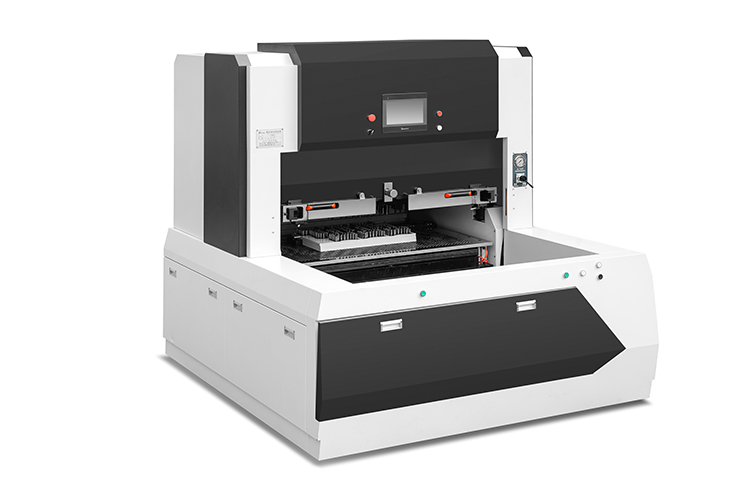

MSTM-780/1080A Multi-Function Hang-tag Stripping Machine
  Prve:MSQF-1080 Automatic Single Head Stripping Machine

MSTM-780/1080A Multi-Function Hang-tag Stripping Machine


Free Type setting, stripping once time

Processing:


Feature:

It replaces manual labor, and improves product quality and enterprise benefit.

It adopts servo motor, Taiwan double guide rail and ball screw which makes accuracy less than 0.02mm.

The latest hydraulic system with inserted motor and oil temperature cooling fan (power 3.75kw). So it has constant and big working pressure.

The complete machine is equipped with PLC, and with a touch screen interface in operation. The operation is safe and easy.

Specification:

Model

MSTM-780A

MSTM-1080A

Max sheet size(mm)

780*540mm

1080*780mm

Max pile height(mm)

60mm

60mm

Common working pile height(mm)

30-40mm

30-40mm

Min pile height(mm)

30mm

30mm

Wood mould height(mm)

120mm

120mm

Bench height(mm)

850mm

850mm

Min stripping size(mm)

30*30

30*30

Stripping speed(times/min)

5

5

Powder voltage(V)

380

380

Max pressure(bar)

100

100

Frequency(Hz)

50/60

50/60

Air consumption(L/min)

2

2

Air compression(bar)

4-7

4-7

Max consumption power

9

9

Pressure

30T

30T

Machine weight(kg)

3200

4000

Machine dimension(mm)

1600*1600*1750

1900*2100*1750

Detailed Images


Value:


4 sets Automatic die cutting machines matching 1 multi-function stripping machine.

8 sets manual die cutting machines matching 1 multi-function stripping machine.

Save time, save labor, save space, save cost, we could reality create value.
