USAGE:

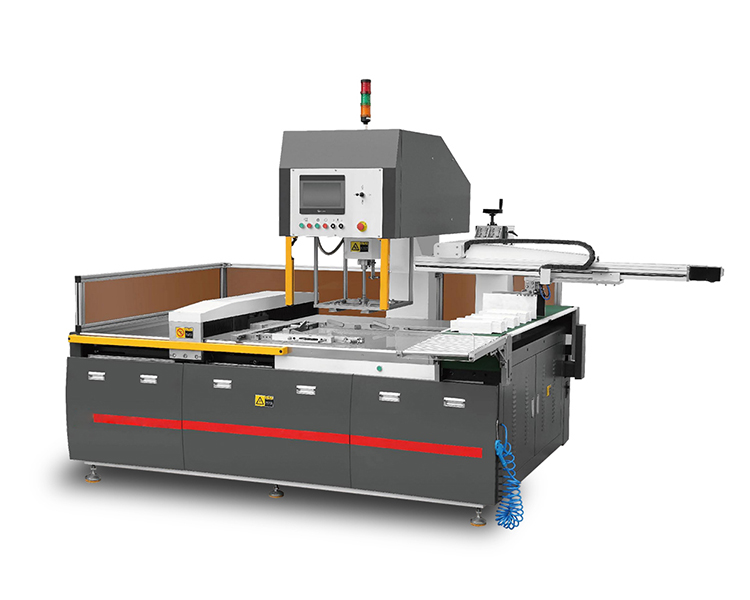

MSQF-680/920/1080TR Automatic Stripping Machine belongs to post printing machine, Post processing of paper creasing and die cutting, the 180 degree rotary die to solve the different direction problem of product. As a professional equipment, mainly used all kinds of cardboard, trademarks (tag), plastic film and other small packages automatically remove the edge and take out complete paper product, good partner of the semi-automatic die cutting machine and roll paper flat die cutting machine. It is suitable for printing, packaging decoration and plastic industries in production.
TECHNICAL PARAMETERS:
Model |
MSQF-680TR |
MSQF-920TR |
MSQF-1080TR |
Max sheet size(x*y)(mm) |
680*480 |
920*680 |
1080*780 |
Max Sheet Size(z)(mm) |
480 |
680 |
780 |
Min sheet size(mm) |
400*300 |
550*400 |
650*450 |
Max pile height(mm) |
100 |
100 |
100 |
Min pile height(mm) |
40 |
40 |
40 |
Bench height(mm) |
850 |
850 |
850 |
Max stripping size(mm) |
230*230 |
360*360 |
390*390 |
Min stripping size(mm) |
30x30 |
30x30 |
30x30 |
Stripping speed(times/min) |
15-22 |
15-22 |
15-22 |
Max pressure(bar) |
70 |
70 |
70 |
Air Consumption(L/min) |
4 |
4 |
4 |
Power(kw) |
5.2 |
5.4 |
5.4 |
Voltage(V) |
380 |
380 |
380 |
Rotary Die Speed(seconds) |
10-80 |
10-80 |
10-80 |
Rotary Die Stroke(degree) |
0-180 |
0-180 |
0-180 |
Manipulator Grip Range(mm) |
30-180 |
30-260 |
30-300 |
Manipulator Grip Weight(g) |
50-1200g |
50-1500g |
50-1800g |
Net Weight(kg) |
1800 |
2200 |
2600 |
Gross Weight(kg) |
2100 |
2500 |
3000 |
Machine Dimension(mm) |
2600*1400*1950 |
3100*1800*1950 |
3600*2050*1950 |
Package Dimension(mm) |
2100*1500*2200 |
2700*1950*2250 |
3100*2250*2250 |
