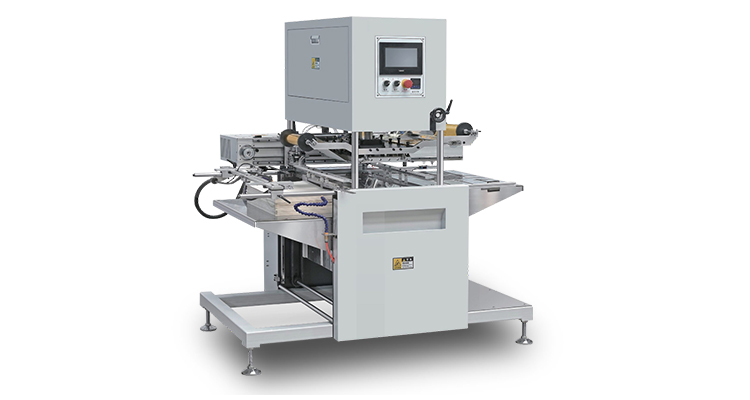

MSC-55/60/78/80 Automatic Servo Gold Stamping Machine
  Prve:MSZC-80 Automatic Servo Gold Stamping Machine

Hot stamping process is a special printing process without ink. The so-called hot stamping refers to the process of hot stamping anodized aluminum foil onto the surface of the substrate under a certain temperature and pressure. The anodized aluminum foil can protect the printed product. After finishing the hot stamping Printed products can be packaged and transported immediately, so anodized aluminum hot stamping is widely used, and the equipment used to complete the hot stamping process is a hot stamping machine.

The hot stamping machine heats various customized hot stamping plates (corrosion plates) patterns through the electric heating plate to melt and transfer the anodized aluminum foil to the surface of the substrate, which can embellish the surface of the printed matter and enhance the artistry of the printed matter; the pattern of the anodized aluminum hot stamping The text shows a strong metallic luster, and the colors are bright and eye-catching. The brightness of the printed matter is far higher than that of gold and silver printing, and it is very textured. Hot stamping process is widely used in high-grade and exquisite packaging decoration, calendars and book covers and other printed matter, and is suitable for hot stamping on paper, cardboard, leather, plastic sheet, cork and other substrates.


 Model  MSC-55  MSC-60  MSC-78
 Max Paper Size  540*450mm  600*500mm  780*600mm
 Min Paper Size  100*100mm  150*150mm  200*200mm
 Max Hot Stamping Area  300*250mm  500*400mm  500*400mm
 Max Working Speed  40times/min  35times/min  30times/min
 Max Feeding Paper Pile Height  450mm  450mm  600mm
 Paper Thickness  120-2000g  120-2000g  120-2000g
 Leather Thickness  2-3mm  2-3mm  2-3mm
 Deviation Correction Accuracy  ±0.1mm  ±0.1mm  ±0.1mm
 Voltage  220V  220V  220V
 Power  3.5kw  7kw  11kw
 Dimension  1500*1220*1650mm  1800*1250*1800mm  2100*1400*2050mm
 Weight  650kgs  750kgs  1580kgs
 Pressure  1.5ton  3ton  7ton
