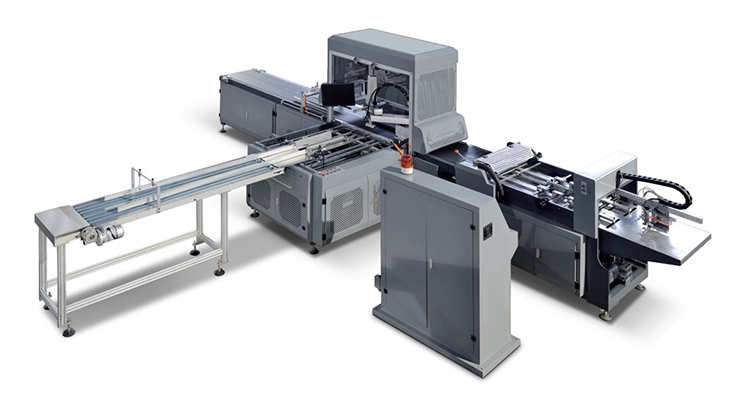

The machine is mainly used for producing boutique boxes with high requirements, like high grade boxes for iPhone, iPad, jewelry gift, makeup, etc.
Its positioning part can feed the inner box and also the cardboard of hardcover, dual functions.
It can work with rigid box forming machine, automatic corner pasting machine and folding machine according to requirement of the boxes
FEATURES
1. Adopts paper feeding principle same with automatic rigid box maker, with stable performance.
2. Adopts YAMAHA robot, can automatically fetch the rough box to the required position accurately.
3. Adopts visual positioning system, the positioning accuracy is ≤±0.1mm.
| Model | MS-600YT |
| Cover Length | 180-100mm |
| Cover Width | 80-600mm |
| Cardboard Thickness | 1-3mm |
| Min Width of Spine | 8mm |
| Max Box Size | 450mm/350mm/150mm |
| Min Box Size | 100mm/60mm/15mm |
| Length of Paper | 190-1030mm |
| Width of Paper | 110-630mm |
| Thickness of Paper | 80-200gsm |
| Position Precision | ±0.1mm |
| Power | 20kw |
| Weight | 7000kgs |
| Dimension | 11000x5000x2800mm |
