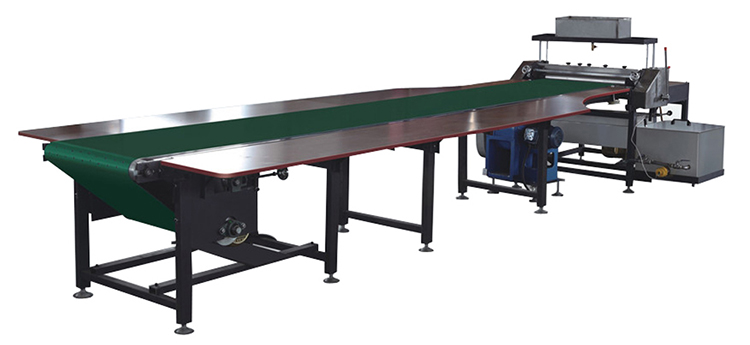

JS-650F Series Semi Automatic Hardcover Gluing Machine

PROCESSING LINE:

Sheet By Sheet Gluing, Feeding by hand



USAGE:

It is mainly used for the gluing of different thickness of paper, paperboard,Special paper, Paper box, carton box, Corrugated box, note book making, paperboard puzzle, instead of manual gluing, improve the efficiency of work.

The gluing machine is the special equipment or paper products to do gluing, which is widely used in printing and packaging, paper box, carton, book cover making and Fabric sample volume producing industry.


SPECIFICATIONS:

Model

JS-650F

JS-850F

Paper thickness

80-200g

80-200g

Paper width(Min)

600MM

800MM

Paper length(MAX)

100-2000MM

100-2000MM

Speed

0-40pcs/min

0-40pcs/min

Power

8KW/380V

8KW/380V

Dimension

6500×1350×1250mm

6500×1550×1250mm

Weight

850kg

1000kg

Glue kinds

Hot melt glue/animal glue/jelly glue, cold glue/white glue

Conveyor Belt

Length can be customized, standard length is 6 meter

DETAIL IMAGES:

1.MANUAL FEEDING PART:

Manual sheet-feed front edge suction for various sheet sizes.

2.GLUING PART:

Adjustable rollers apply smooth glue coating on the sheet surface. The circulating glue system with temperature controller assures the adequate glue consistency

Upper glue tank for the cold glue.

3.CONVEYOR BELT PART

Conveyor equipped with air-suction system to forward sheet flat and stably.
