JS-650A Auto Feeder Hardcover Glue Machine

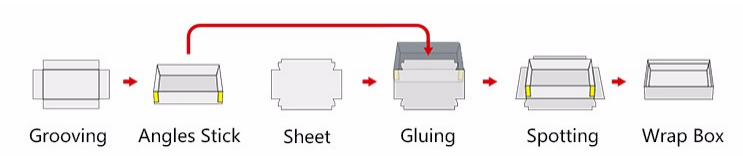

PROCESSING LINE:

Sheet By Sheet Gluing, Feeding by automatic



USAGE:

Auto feeder hardcover gluing machine is mainly used for the gluing of different thickness of paper, paperboard, special paper, Paper box, carton box, Corrugated box, note book making, paperboard puzzle, instead of manual gluing, improve the efficiency of work.

The gluing machine is the special equipment or paper products to do gluing, which is widely used in printing and packaging, paper box, carton, book cover making and Fabric sample volume producing industry.


SPECIFICATIONS:

Model

JS-650A

JS-850A

Paper thickness

80-200g

80-200g

Paper width(max)

650mm

850mm

Paper length(max)

100-2000mm

100-2000mm

Speed

0-40pcs/min

0-40units/min

Power

9kw/380v

9kw/380v

Size of Machine(mm)

6500×1350×1250

6500×1550×1250

Weight of Machine

850kg

1150kg

DETAIL IMAGES:

1.AUTOMATIC FEEDING PART:

Automatic sheet-feed front edge suction for various sheet sizes.

Paper pile max height is 400mm.

It can place one or two pile paper to feeder together.

Machine with foot panel which can control full machine start or stop

2.GLUING PART:

Gluing roller with copper knife, which avoid paper stick on roller, ball bearing design of feed table, the sheets are conveyed straight-through by pressure system.

Machine can use the jelly glue and cold glue, with separated glue tank.

3.CONVEYOR BELT PART

Conveyor equipped with air-suction system to forward sheet flat and stably.

Belt length common is 4.5 meters, and it can be customized, min length is 2.2 meters.
