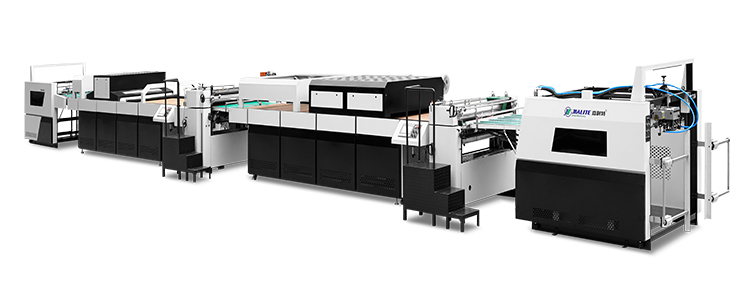

SG-II Automatic Double Coater UV Oil Varnishing Machine
  Prve:SG-A Automatic UV Oil Coating Machine

SG-II1200 UV oil coating machine which is suitable for the varnishing and polishing process of various paper, machine for water-based oil, UV oil and blister varnish oil coating, after processing the print surface has the damp-proof and water-proof effects. Machine adopts the reversing mechanism to make the oil layer smooth and fine, save varnish oil and meets the high quality requirements. The coator adopts air knife system which controlled by memory type PLC.



FEEDING UNIT

1.High Speed Feeder, 4 suckers for lifting and 4 suckers for conveying structure. Max Speed 12000 sheets/h
2.The paper feeding table has upper and lower over-limit protection
3.Double or multi-sheet detection device
4.The paper pile table rise protection device, there is a micro switch above the paper carrier to prevent the paper from rising too high and hitting the feeder



FIRST COATER WITH AIR KNIFE

1.Three rollers reversing speed control head to ensure the water-based varnishing effect without streak printing.
2.The metering rollers are individually motor driven to ensure even gluing.
3.Add pedal for workers to step on and use, more convenient to debug the machine, and add railing behind the pedal for more safety.
4.Improved air knife technology for thin paper (100-600g) to ensure that the paper does not attach to the roller after coating and runs smoothly.
5.Upgrade the touch screen operation center console, more convenient and accurate operation.



DRYER+FAN

1.Infrared drying with 18pcs Infrared lamp
2.Fan cooling device



SECOND COATER WITH AIR KNIFE

1.Three rollers reversing speed control head to ensure the water-based varnishing effect without streak printing.
2.The metering rollers are individually motor driven to ensure even gluing.
3.Add pedal for workers to step on and use, more convenient to debug the machine, and add railing behind the pedal for more safety.
4.Improved air knife technology for thin paper (100-600g) to ensure that the paper does not attach to the roller after coating and runs smoothly.
5.Upgrade the touch screen operation center console, more convenient and accurate operation.



DRYER+FAN

1. Ultraviolet drying with 3pcs ultraviolet lamp
2.Fan cooling device



COLLECTOR UNIT

1.Adopt pneumatic paper sorting structure to ensure the neatness of the paper and facilitate the next process
2.Counting electric eye, the number of running paper is displayed on the display screen at the take-up machine, which can be cleared and accumulated
3.Induction electric eye, sensing the length of the paper, if the length of the paper changes, the belt will accelerate, and the baffle of the take-up machine will overturn and lift the paper



Model

型号

SG-II-E

Max Paper Size

纸张最大尺寸

1150*1100mm

Min Paper Size

纸张最小尺寸

390*320mm

Roller Length

辊筒长度

1250mm

Paper Thickness

纸张厚度

100-600gsm (the first coater use water or water base oil coating, the second coator use UV oil coating)

Working Speed

工作速度

10-80m/min

Working Power

工作功率

10/12/15

Feeding Paper Pile Height

送纸堆高度

1150mm

Collecting Paper Pile Height

收纸堆高度

1050mm

Voltage

电压功率

380V 50Hz 3P

Breaker Load

断路器负荷

100A

Main Motor Power

主电机功率

3.5kw

Standby Power

待机功率

15Mpa

Infrared Lamp Power

红外灯管

1.2kw*18pcs

Ultraviolet Lamp Power

紫外灯管

8kw*3pcs

Weight

机器重量

7500kgs

Dimension

机器尺寸

17000*2000*1700mm

Oil Type

油品类型

Water Based Oil, UV Oil, Blister Oil, Plastic Oil
