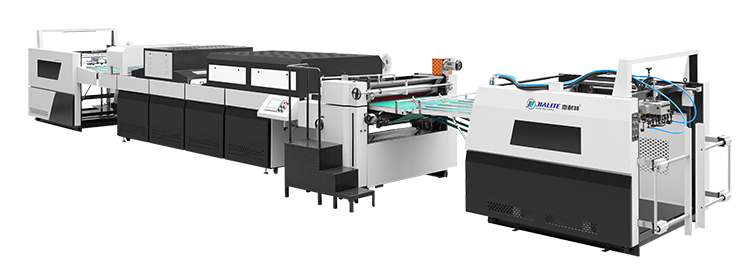

SG-A Automatic UV Oil Coating Machine
  Prve:SD-1050W Automatic Spot UV Oil Coating Machine

SG-A series UV oil coating machine which is suitable for the varnishing and polishing process of various paper (250-600g/m²), machine for water-based oil, UV oil and blister varnish oil coating, after processing the print surface has the damp-proof and water-proof effects. Machine adopts the reversing mechanism to make the oil layer smooth and fine, save varnish oil and meets the high quality requirements.



FEEDING UNIT

1.High-speed paper feeder, upper and lower limit protection of paper feeding table

2.double-sheet or multi-sheet paper feeding detection device make machine stop, stepless frequency feed;

3.Paper layer table upper protection device, The top side of paper table and feeder with micro-switch to prevent paper from rising too high impact feeder.



SA COATER

1.Measuring roll is driven by a separate motor to ensure even glue loading.(oil coating roller dia. 185mm)

2.Add pedal for workers to step on and use, more convenient to debug the machine, and add railing behind the pedal for more safety.

3.Upgrade the touch screen operation center console, more convenient and accurate operation.



INFRARED DRYING AND ULTRAVIOLET DRYING

1.Infrared dryer unit: constant temperature IR infrared lamp unit can set the temperature according to the product requirements.Energy saving, fast drying of water varnish oil, high temperature Teflon belt with automatic deviation correction protection.

2.Ultraviolet dryer unit: 3 pcs of 8 kw UV tube, could choose open 1 group, 2 groups or 3 groups tube, fans cooling.

3.Fan cooling device



NON-STOP COLLECTOR

1.Adopt pneumatic paper sorting structure to ensure the neatness of the paper and facilitate the next process

2.Counting electric eye, the number of running paper is displayed on the display screen at the take-up machine, which can be cleared and accumulated

3.Induction electric eye, sensing the length of the paper, if the length of the paper changes, the belt will accelerate, and the baffle of the take-up machine will overturn and lift the paper


Model

型号

SG-A

Max Paper Size

纸张最大尺寸

1150*1100mm

Min Paper Size

纸张最小尺寸

390*320mm

Roller Length

辊筒长度

1250mm

Paper Thickness

纸张厚度

250-600gsm

Working Speed

工作速度

10-80m/min

Working Power

工作功率

10/12/15

Feeding Paper Pile Height

送纸堆高度

1150mm

Collecting Paper Pile Height

收纸堆高度

1050mm

Voltage

电压功率

380V 50Hz 3P

Breaker Load

断路器负荷

100A

Main Motor Power

主电机功率

2.5kw

Standby Power

待机功率

15Mpa

Infrared Lamp Power

红外灯管

1.2kw*18pcs

Ultraviolet Lamp Power

紫外灯管

8kw*3pcs

Weight

机器重量

6400kgs

Dimension

机器尺寸

10800*1800*1750mm

Oil Type

油品类型

Water Based Oil, UV Oil, Blister Oil, Plastic Oil
