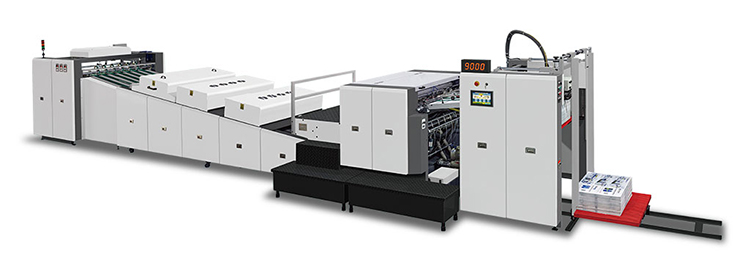

High Speed UV Spot and Overall Coating machine adopts upper-swaygripper-pass-sheet method to enable max speed up 9000 sheets/hour. UV curing system with Teflon conveying belt has characteristic of higher speed, precise orientation and UV curing higher efficiency and lower power consumption. After sheet travelling through UV coater and being transferred directly by Teflon belt, gripper can not be heated by high temperature from UV light, which prevent them from being damaged or deformed to ensure easy maintenance.
FEEDING UNIT
High speed feeder with four sucking and four forwarding suckers can feed sheet smoothly
SHEET FEEDING UNIT
Upper swing sheet transferring method cantransfer sheet smoothly at high speed to pressure cylinder exactly .
VARNISH SUPPLY
Steel roller and rubber roller with metering roller reversing and doctor blade design control varnish consumption and volume to meet the demand of products and operate easily.(Varnish consumption and volume are determined by LPI of ceramic anilox roller)
TRANSFERRING UNIT
After sheet is transferred from pressure cylinder to gripper , air volume blowing for paper can support and reverse sheet smoothly , which can prevent sheet surface from being scratched
CONVEYING UNIT
Upper and lower conveying belt can form thin sheet to be curved for smoothly delivery.
SHEET DELIVERY
Automatic pneumatic patting sheet controlled by photoelectric detecting sensor make sheet pile fall automatically and collect sheet neatly Electronic control can take out sheet sample safely and quickly for inspecting
Model |
型号 |
SD-1050W |
Coating Registration Accuracy |
上光套印精度 |
±0.2mm |
Max.Sheet Size |
最大纸张尺寸 |
730*1060mm |
Min.Sheet.Size |
最小纸张尺寸 |
310*406mm |
Max.Coating Area |
最大上光面积 |
720*1050mm |
Sheet Thickness |
纸张厚度 |
80-500gsm |
Production Speed |
生产速度 |
9000sheets/hour |
Machine Weight |
机器重量 |
8000kg |
Dimension（L*W*H） |
机器尺寸 |
11960*2725*1976mm |
Power Required |
机器重量 |
44kw（油性For Solvent Base）/40kw（水性 For Water Base） |
optional Device |
选配装置 |
Non-stop Feeding and delivery mechanism Fold the Car Device Ceramic Anilox Roller |
