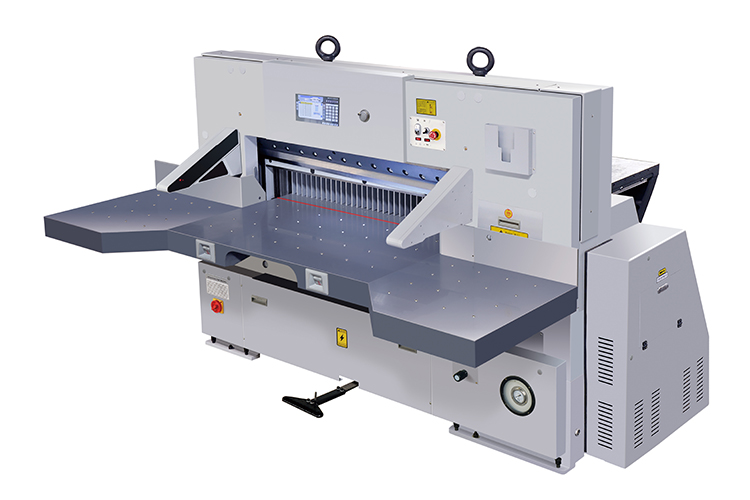

Paper Cutting Machine

USAGE AND FUNCTION
Y series of machine adopts whole slot-less worktable surrounded by double guide paper sending system. For this system, paper sending speed is high and paper sender posit precisely. Controlled through hydraulic system which make the pressure can be adjusted bigger. The paper -pressing pressure can be adjusted from 200N to 55000N, which ensure the cutting quality. The cutting is operated by double hands. And the machine is installed with safe devices such as photo cell, electronic knife lock and single recycle cutting it has features of low noise large cutting power, high precision Customer can choose to equip the machine withthe electric components imported from France Germany japan high speed ball screw of Taiwan and the hydraulic system European safety certificate.

PRODUCT DESCRIPTION

1.USAGE: Program Control Paper Cutting Machine is used to cut the printing paper of various kinds, paper products, plastic, thin film, leather, slice of non-ferrous metal, etc.

2.COMPUTER: it adopts 8 inch color liquid crystal display screen,2000 groups programming capacity, each of them can store 999 cuttings' datum of different locations;0.01 mm position accuracy; six kinds of language; the working speed is 6-18m/min.

3.DOUBLE HYDRAULIC DEVICE: the hydraulic system adopts the Germany advanced technology. Equipped with combined hydraulic valve, double hydraulic controlling structure, it approves hydraulic device greatly. The hydraulic device pass CE certificate.

4.DOUBLE GUIDE DEVICE: the paper pusher adopts double imported linear guide and roller ball screw, which can prolong the machine use life, and can bear the high speed paper delivering.

5. PHOTO CELL: it is equipped with a photo cell safety protection device.

6.OVER LOAD PROTECTION DEVICE: convenient knife changing device.

7.WORKTABLE CHROME TREATMENT: the worktable and side board surface are all adopted chrome treatment to improve the precision and quality of the machine.

8.AIR BALL: air balls are installed in the worktable. The paper sending work will be easy and accurate.

9.CUTTING CONTROLLER: both of the user’s hands operate the machine. It can cut paper in one time.

10. ELECTRONIC KNIFE LOCK: when the machine is malfunction, the electronic knife lock will lock the knife, and the machine will stop cutting to protect safety.

11.SAFETY NOTICE & GLASS COVERS: the machine has passed CE certificate. All the safety notice and direction mark is used to cause the safety attention of the user, and do protection and maintenance in time.(optional)

12.MAIN ELECTRIC DEVICE ARE IMPORTED FROM GERMANY, FRENCH, JAPAN, ETC.

1370 SERIES TECHNICAL DATA

Model	unit	Y1370D
Total width of machine	cm	289
Half width of machine body	cm	108
The thickness of machine´s surgade	cm	30
Total width of machine body	cm	239
Total length of machine	cm	290
The length from cutting position to the front table	cm	73
the height from working table to ground	cm	93
Total height of machine	cm	167
Max. cutting length	cm	145
The length from cutting position to back table	cm	195
The length of side table	cm	65
The length of machine cushion	cm	70
The width of working table	cm	137
The width of groundsill of machine foot	cm	60
Max cutting width	cm/lnch	137/53.9
Max. cutting length	cm/lnch	145/57.1
Max cutting height	cm/lnch	16.5/6.5
Main motor power	KW	4
Weight	KG	4500
Width of machine with sideway	cm	289
Width of machine without sideway	cm	259
Machine Length	cm	290
Machine Height	cm	171
Front table length	cm	73
Table length	cm	93
Min Clamp pressure	N	200
Max Clamp pressure	N	45000
Knife thickness	cm	160×16×1.37
Grinding reserve	cm	6
Smallest cut without false clamp	cm/lnch	3/1.2
Smallest cut with false clamp	cm/lnch	10/3.9
Cutting speed	cycles\min	45
Packing size (L×W×H)	cm	288152202
Voltage(three-phase)	V	365-395
Wire size	mm2	2.5
