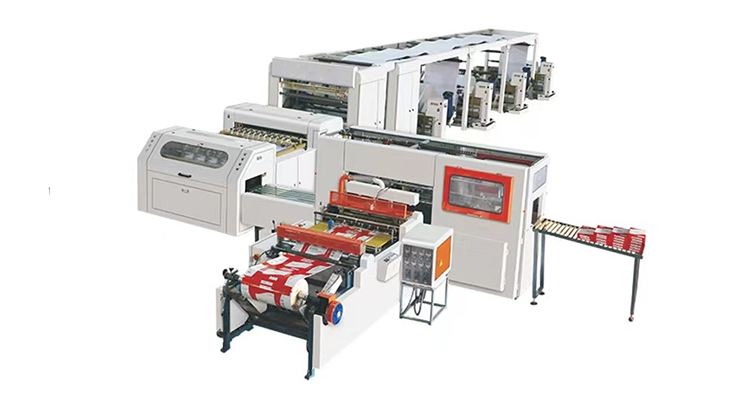

As technics of our machine, we hereby describe the related functions and work flow for paper products: unwinding→ cutting → conveying → collecting → Packaging.
FEATURES
1.Adopt Multi-functional digit-display stepless speed regulation, PLC control.
2.Equipped with touch screen, realizing man-machine interface.
3.Automatic cross cutting and feeding of roll over wrapping paper.
4.Common color printing paper, top grade color printing paper and film laminated paper can be used as outer overwrapping paper.
5.Reasonable structure, higher efficiency, easier operation and increased sealing capacity.
Paper Width
1100mm
Cutting Numbers
5 cutting-A4 210(width)
Paper Rolls Diameter
1400mm
Paper Core's Diameter
3"(76.2mm) or 6"(152.4mm) or according to the client demand
Packing Paper Grade
High-grade copy paper; High-grade office paper; High grade Free Wood paper etc.
Paper Weight
60-100gsm
Sheet Length
297mm (specially design for A4 paper, the cutting length is 297mm)
Ream Amount
500 sheets Max Height 5-55mm
Production Speed
Max 0-45m/min (depends on different paper quality)
Max. Numbers of Cutting
150cuts/min
Output of the ream
6 reams/min
Load of Cutting
100g/m2 (1×100g/m2)
Cutting Accuacy
±0.2mm
Cutting Condition
No variation of the speed, no break, cut all the paper at one time and need the eligible paper.
Main Power Supply
3P 380V /50HZ
Power
20kw
Air Consumption
200NL/min
Air Pressure
6-8 bar
Edge Cutting
5~10mm*2
Safety Standard
Design according the safety standard of China
