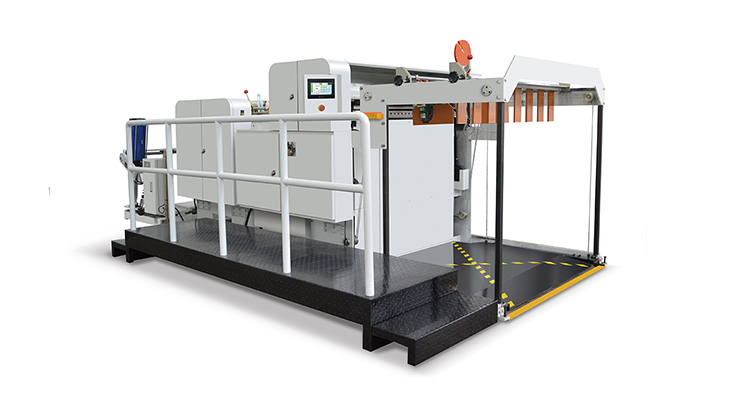

We adopt servo motor to control the length of cutting, This machine has electric and pneumatic control system, easy operating, high precision in cutting, working stable, low-noise. Frequency converter control motor speed with stable running, automatic counting, alarm and automatic-stop, Full automatic tension control. Web edge position automatic correct control by EPC system. Waste edge is blowing by fan automatically.
Adopts pneumatic shaft materials loading system with much easy operation and convenience.
It adopts servo motor for controlling constant-length cutting(precision:±0.2mm)
It adopts Japanese Panasonic PLC control, Taiwan Weinveiw touching panel (screen operation).
The machine can slit to two sheets and color photo eye(color tracking sensor) for after printing web material.
The machine can automatic to trimming and stacking the finished sheets.
FEATURES
1. Main machine frequency conversion speed regulation, PLC touch screen control system, automatic counting, automatic fixed length, alarm stop, automatic tension control and other functions;
2. The unwinding adopts a conjoined automatic feeding structure, and the unwinding reel adopts a 3-inch key strip type inflatable shaft;
3. The frame adopts 10-12mm steel plate and groove-shaped rigid structure, the cross-cutting knife seat adopts cast recombined structure, and the guide adopts statically balanced alloy aluminum guide;
4. The driving positioning servo drive shaft is polyurethane rubber, and the feeding mode motor drives the sprocket transmission.
5. This machine is an ideal large-scale coil cutting equipment with high precision, fast speed and stable material receiving.
Model |
型号 |
MSHQJ-B |
Max Unwinding Roll Width |
最大放卷宽度 |
1100mm/1400mm/1600mm |
Max Unwinding Roll Diameter |
最大放卷直径 |
1400mm |
Max Unwinding Roll Weight |
最大放卷重量 |
1200kg |
Speed |
速度 |
50-150times/min |
Cutting Type |
分切方式 |
Guillotine knife |
Cutting Length |
裁切长度 |
300-1200mm |
Paper Thickness |
裁切厚度 |
70-500gsm |
Precision |
分切精度 |
±0.2mm |
Weight |
重量 |
3500kg |
Dimension |
机器尺寸 |
4500*1600*1500mm |
