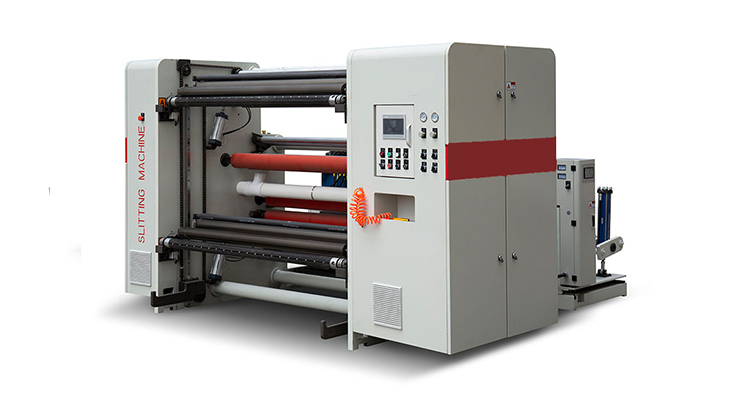

This machine is suitable for cutting all kinds of paper, self-adhesive paper, paper-plastic composite, color printing composite and other large roll packaging materials.

adopts servo motor to control fixed-length cutting.

The transmission system adopts centralized control such as pneumatic and photoelectric sensors.

Has the advantages of easy, convenient operation, High cutting precision, mechanical stability and low noise. (Pneumatic feeding can be selected) Motor frequency conversion speed regulation, automatic counting, alarm stop, magnetic powder or friction sheet manual tension adjustment function.

FEATURES

1.PLC controlling system make the machine having an intelligent operation. Machine using three sets servo motors control keep the rewinding roll with high precision. Automatic tension control system. Center&Surface Rewinding Type make the rewinding roll compact and slitting surface is very smooth.

2.Machine use frequency converter adjust speed, keep stable running when speed go up.

3.Automatic count meter, automatic alarm and stop when the roll reach the setting diameter or length.

4.Rewinding shaft use two pcs air shaft structure,finished rewinding rolls automatic unloading device.

5.Round blade knife slitting the material, blade knife freely adjustment by manual,and waste material take out by fan

6.Web material edge position automatic correct(EPC system)

7.Automatic cylinder shaft mother roll unwinding structure/hydraulic shaft-less mother roll unwinding structure(optional)

8.The machine have elevator to automatic unloading the finished rewinding rolls.
