Usage:
Put the glue plate full with white latex on the plate rail, adjusting the angel and installing the block pole, making sure the two paper feeding reel do not stick with the glue. Turn on the power, and adjust the
speed and the interval between the iron roll according to the requests. When using, please keep the glue uniform, and do not operate in oversize sleeves, which may be a danger when the sleeves are
involved into the machine to cause safety problems. The gluing machine must be clean.
Function:

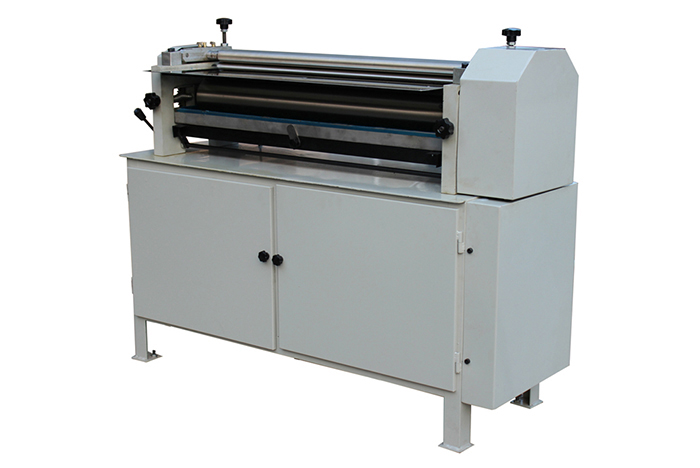

It is mainly use for the gluing of different thickness of paper in paper box industry. The gluing machine is the special equipment or paper products to do gluing, which is widely used in package printing, paper box, carton and hardcover industry.
Specification:
| Model |
Unit |
JS-700B |
| Gluing side |
|
Under side |
| Max. gluing
width |
mm |
700 |
| Min. gluing
thickness |
g/m |
0-300 |
| Paper
thickness |
g |
40-3000 |
| Materials
thickness |
mm |
0.1-10 |
| Speed |
m/min |
0-28 |
| Motor power |
w/v/hz |
150w 220V-60Hz |
| Dimension(L*W*H) |
mm |
1000×450×1100 |
| Package
Dimension |
mm |
1050×520×1150 |
| Net weight |
kg |
120kg |
| Gross weight |
kg |
130kg |
