Working
principle：

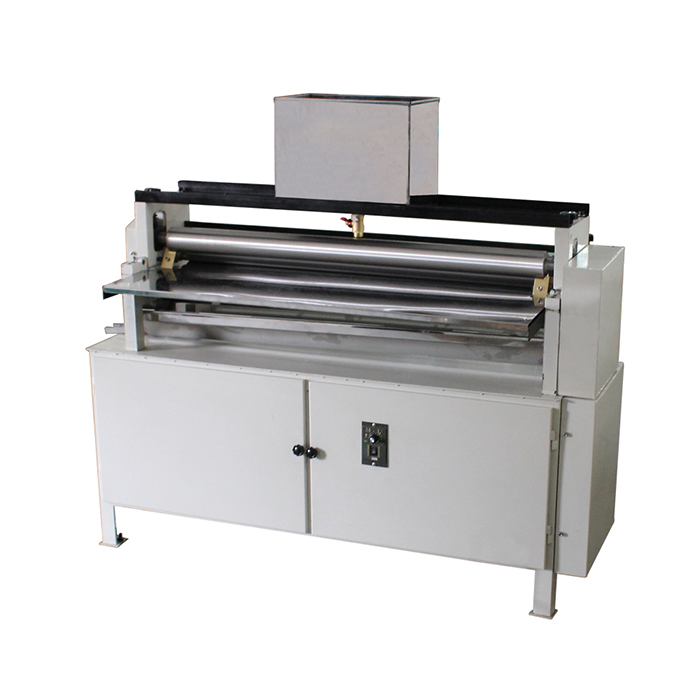

The glue bucket is above the machine, the glue flow down
through the valve to the roller, the value control the glue thickness, when
roller rotation, paper (or other material with smooth surface) feeding and
coating at the same time, the glue evenly over the surface.The feeding speed
could adjustment.
Usage:
JS-C series is adjustable
speed upper-side gluing machine, it
is adopt stainless steel, effective
anti - glue corrosion.
It is mainly used for the gluing of different thickness of paper,
paperboard,
Special paper, leather, EVA, Nonwoven fabric, Oxford cloth,
Etc. Paper box, carton box, Corrugated box, Leather case, note book making, EVA
puzzle, Instead of manual gluing, improve the
efficiency of work.
The gluing machine is the special equipment or paper products to do gluing,
which is
widely used in printing and
packaging, paper box, carton, book cover making and Fabric sample volume producing industry.
Specifications:
|
Model |
Unit |
JS-700C |
JS-800C |
JS-900C |
JS-1000C |
|
Gluing side |
|
upside |
upside |
upside |
upside |
|
Max. Gluing width |
mm |
700 |
800 |
900 |
1000 |
|
Max. Gluing thickness |
g/m |
0-300 |
0-300 |
0-300 |
0-300 |
|
Paper thickness |
g |
40-3000 |
40-3000 |
40-3000 |
40-3000 |
|
Material thickness |
mm |
0.1-10mm |
0.1-10mm |
0.1-10mm |
0.1-10mm |
|
Speed |
m/min |
0-28 |
0-28 |
0-28 |
0-28 |
|
Motor power |
W |
400w |
400w |
600w |
600w |
|
Voltage |
v/hz |
220v-60hz |
220v-60hz |
220v-60hz |
220v-60hz |
|
Dimension |
mm |
1100×530×1100 |
1200×530×1100 |
1300×530×1100 |
1400×530×1100 |
|
Package |
mm |
1150×580×1200 |
1250×580×1150 |
1350×580×1200 |
1450×580×1200 |
|
Net weight |
kg |
120 |
130 |
140 |
160 |
|
Gross weight |
kg |
140 |
150 |
160 |
180 |
|
Glue choice |
|
White latex (polyethylene glue) |
|||
|
Paper feed |
|
By hand |
|||
|
Cleaning way |
|
By hand |
|||
|
Automatic degree |
|
Semi-automatic |
|||
