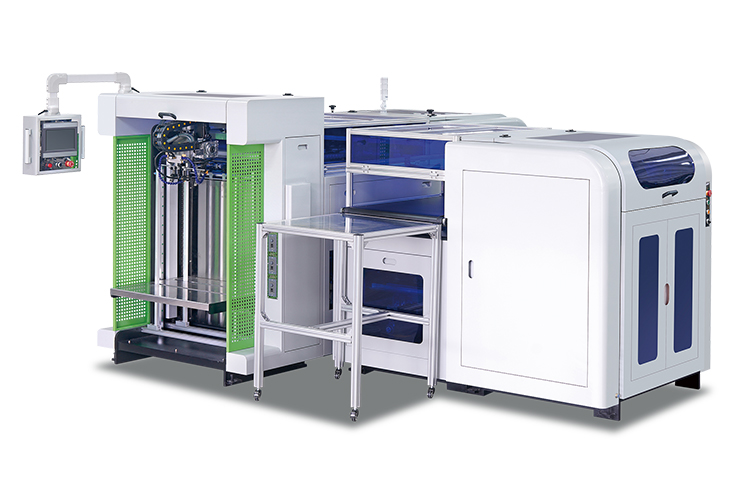

MSKC-860FD Automatic Feeder Cardboard Grooving Machine
  Prve:MSKC-W800K Automatic Feeder Cardboard Grooving Machine

USAGE:

Feeder gooving machine belongs to the box package production line equipment. The machine is special designed for paper card V type grooving. It suits for box, case or other packaging product, such as phone box, medicine box, watch box etc.

PROCESS:


SPECIFICATION:

Model

MSKC-860FD

Min Sheet Size

150x150mm

Max Sheet Size

680x450mm

Thickness

200-600gsm

Knife Angle

80-140° adjustable

Feeding Correction Length Of Host 1&2

1000mm

Max Feeding Paper Pile Height

750mm

Total Grooving Knives Number

18 sets, each host with 9 set grooving knives, and 3 row knife holder

Knife Material

Tungsten Steel

Grooving Speed

20-60m/min

Roll Diameter*Length Of Host 1&2

600x800mm

Power

9kw

Voltage

380v 50hz 3phase

Precision

±0.1-0.2 mm

Net Weight

3700kgs

Package Dimension

3150x1630x1960mm



2060x1630x1650mm

Gross Weight

2200+1700kgs

MACHINE FEATURE:

1. Our cross-shaped grooving machine enables single-pass can achieve horizontal and vertical grooving.

2.It can works for regular and irregular shaped papers.

3.The auxiliary blowing system adopts the adjustable delay pause function, which is environmentally friendly and energy-saving.

4.Feeder type paper feeding, suitable for various paper types, gold and silver card paper grooving can prevent scratching.

MACHINE DETAILS:

1.Feeder suitable for the various kinds of paper, including the gold, silver card paper and matt laminated product.

2.10-inch removable display screen for easy operation

3.Single-sided pressure wheel correction is more accurate.

4.The counting photoelectric can count the output.

5.The part with 3 rows of knives, each row has 3 knives, which can meet the needs of multiple products to open multiple slots at one time.

6.The air blow pipe can adjust the position of the air blow port according to the needs, which is convenient for cleaning the slotting waste

7.The conveyor belt can help collect waste and reduce the workload of operators

8.The belt with suction can ensure the smooth transportation of paper

9.The 1000mm length of deviation correction can ensure the accuracy of the second slotting

10.After the second grooving, the pressing wheels, baffle and conveyor is confirm that the product is output neatly.

11.The output part is located on the right side of the feeder. One person operates one device to achieve high efficiency and save labor costs.

SAMPLES:
