USAGE:
MSRY-S Multi printing press suitable print on Self -Adhesive Stock (paper, PET, BOPP, PVC), Glossy Paper, Unsupported Film, (PVC, BOPP, PET, PE, PA) Aluminum Foil, Laminated tube, light cardboard.
SPECIFICATION:
Model |
MSRY-S |
Max.Web width |
350/460/540/660mm |
Max.Printing width |
340/450/530/650mm |
Max.Unwind Diameter |
1050mm |
Max.Rewind Diameter |
1050mm |
Max.printing speed |
200m/min |
Printing Precision accuracy |
±0.1mm |
Rotary die cutting accuracy |
±0.15mm |
Rang of printing |
9.5-24“ |
Max.label die cutting speed |
150m/min |
Pre –registration |
yes |
Auto registration |
yes |
Material substrate |
Paper and adhesive paper: 20–350 gsm BOPP, OPP, PET, PP, shrink sleeve, IML, and most plastic films (12–300 microns) |
Power |
380V, 50/60HZ |
Air Supply |
0.8KPA |
Max current |
60A |
Machine Weight |
About 10000KG depend on quantity of unit |
MACHINE FEATURE:

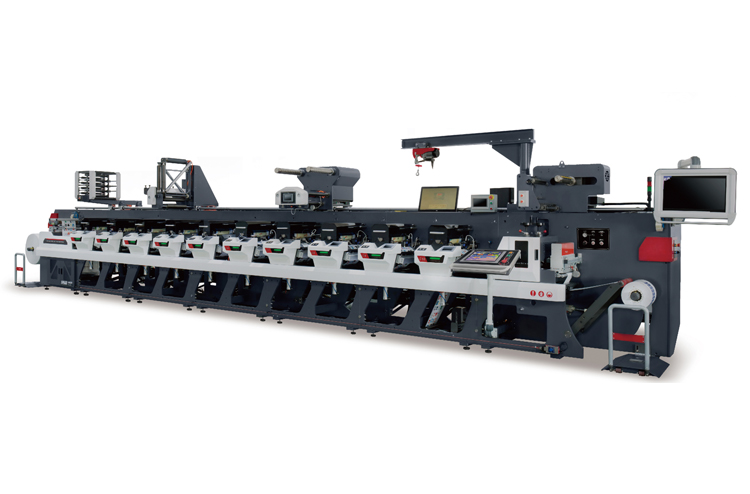

1.The MSRY-S press is our newest machine, which is aimed at producing high-quality labels. It is suitable for printing with film material, Aluminium material, and all paper material.
2.This machine, with compact size and short web path, keeps the wastage of material
3.The Printing roller adopts a sleeve style, which is light and easy, convenient and fast to exchange; this design largely improves the printing quality and reduces the maintenance
4.The impression roller is equipped with a water chiller, it is good for film material as well
5.The full machine adopts all servo motors; each printing unit has triple servo motors, one for the sleeve cylinder, one for the impression roller, and the last one for the anilox roller.
DETAILS:
AUTO CONTROL SYSTEM
*Latest servo control system
*Bilingual operation: English and Chinese
*Registration sensor
*Automatic fault detection and alarm system
*Video inspection system
*Power supply: 380V–400V, 3-phase, 50Hz–60Hz
MATERIAL FEEDING SYSTEM
*Unwinder with pneumatic lift (Max. diameter: 1050mm)
*3-inch air shaft
*Automatic inflation and deflation
*Servo motor control
*Automatic tension control
*Automatic stop system for material shortage
*Web guiding system with paper splicing table
*Air pressure dancer roller for tension control
*Web cleaner
*Corona treater
PRINTING SYSTEM
**Super Flexo Printing Unit**
* Each printing cylinder is driven by an independent servo motor
* Printing cylinder uses a sleeve-style design for easy exchange
* Printing plates are mounted on the sleeves
* The impression roller also serves as the water-chilled roller (diameter: 195mm), directly driven by an independent servo motor. It ensures excellent printing performance on plastic film
* Anilox roller is driven by a servo motor
* Entire printing unit is gearless
* Automatic cooling circulation system: Enables simultaneous material cooling during printing, ensuring efficient operation with thin substrates
* Pre-registration is controlled by a servo motor. After inputting the print length on the main touch screen, the motor calculates the position automatically. The printing sleeve will move to the corresponding position based on the manually set zero point
* **Auto-registration**: After configuring the color sensor and adjusting the registration sensor to detect the printed eye marks, simply turn on the AUTO mode for continuous automatic tracking and registration
* Each unit is equipped with its own operation panel for fine adjustments, with a self-locking function
* Fine pressure adjustment through bearer system
* The pressure between the anilox roller, printing plate, and substrate is finely adjusted via bearer contact
* Supports second-pass printing
* Anilox roller is designed for easy removal
* Ink tray is designed for quick removal and cleaning
* Each printing unit has its own HMI, in addition to the main HMI for the entire machine
UV DRYER (FAN COOLER 7KW PER UNIT)/LED UV DRYER(CHILLER COOLER ,3KW PER UNIT)
*UV dryer from IUV (China), stepless electronic UV
*Independent power control for each UV dryer
*Power automatically adjusts according to printing speed
*Automatic control of UV exhaust system
*Independent UV control panel
COLD STAMPING DEVICE
*Cold foil unit mounted on rails for movement across printing units
*Rewinding operates smoothly under servo motor control
*Pneumatic expanding shafts for both unwinding and rewinding
ROTARY DIE CUTTING
*1 set of die-cutting station
*Three-roller die-cutting system, capable of processing from either the front or back side of the web by switching the anvil roller and magnetic roller
*A crane is installed near the die-cutting station for loading and unloading the magnetic cylinder
MATRIX REWINDING SYSTEM
*Max. waste rewinding diameter: 900mm
*3" pneumatic expanding air shaft
*Matrix rewinding is driven by a servo motor
REWINDING DEVICE
*Maximum diameter: 1050mm
*3" air-expanding shaft
*Pneumatic cylinder for loading and unloading
*Driven by a servo motor
