USAGE:

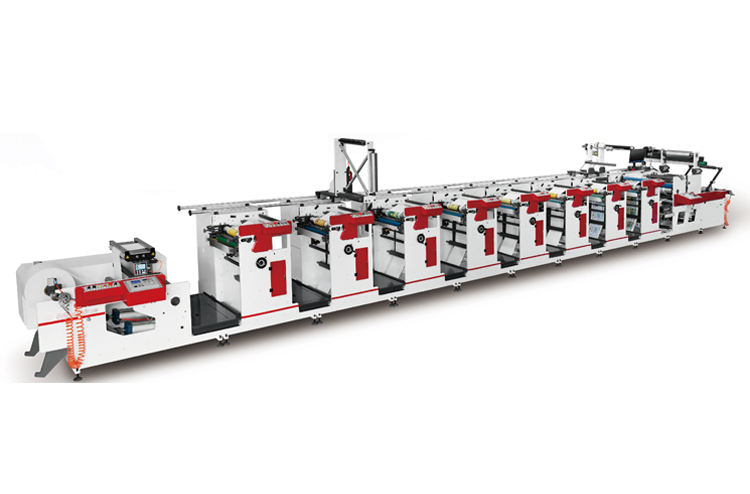

MSRY-H Flexographic printing presses are widely used in the efficient printing of materials such as self-adhesive labels, and are suitable for continuous printing production of large quantities of labels and packaging.

SPECIFICATION:

MACHINE FEATURE:

●This machine is equipped with high-quality ceramic anilox cylinder to transfer the ink.

●Each plate is adjustable for 360-degree.

●With accurate ink transfer from 100LPI to 1200LPI (anilox)

●Auto Web-guiding

●Auto tension for unwinding   is controlled by magnetic powder

●It’s convenient to lift the material by pneumatic cylinder for unwinding and rewinding.

●Each printing unit is driven by single  servo motor.

●Each station is equipped with IR dryer. (UV dryer is optional.)

●When the machine stops, the ink rollers come off from the machine automatically but keeping rotating to prevent the ink from drying. The plate cylinder will also be separated automatically from the impression roller which prevent for damaging the plate with pressing the plate for a long time

●This machine is equipped with turn bar, which can be printed on back side.

●Rewinding is controlled by Servo motor

●Cold foil, lamination optional.

●Die-cutting station is equipped with coreless wasting which is cost-effective or roll rewinding depend on customer.

DETAILS:

1.Unwinding (Magnetic brake)--Auto Web Guiding--Printing (servo motors) -nipping roller (servo motors )--Drying--Rotary Die Cutting (servo motor )--Wasting (servo motor )--Rewinding (servo motor )

2.Suitable for wine label, cosmetics label, medicine label, clothing tag of high-grade label and so on.
