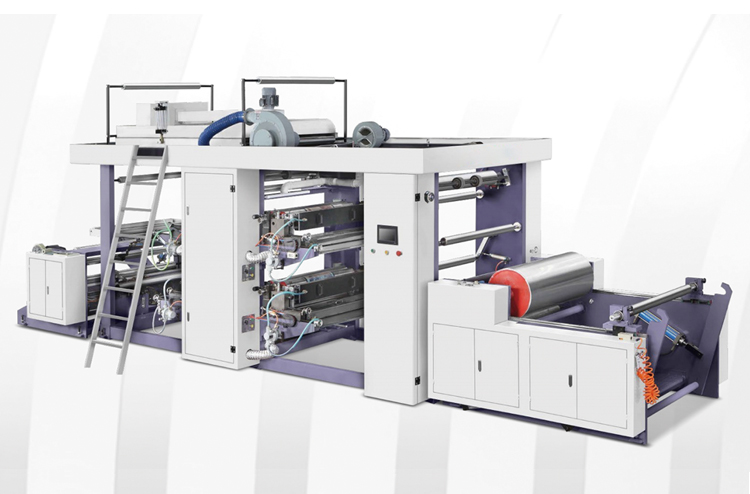

MSRY-Z This flexographic printing machine uses PLC to control the whole machine, with hydraulic automatic loading and unloading. Colour registration is precise, easy to operate and highly automated. It is suitable for printing on roll materials and is ideal for printing on food paper bags, plastic bags, woven bags etc.

SPECIFICATION:

MACHINE FEATURE:

1. The machine adopt with synchronous belt drive and hard gear face gear box. The gear box adopt with synchronous belt drive each printing group high precision planetary gear oven(360ºadjust the plate) gear driving the press printing roller

2. After printing, long running material space ,it can make the ink drying easily,better results.

DETAILS:

CONTROL PART

1. Main motor frequency control,power

2. PLC touch screen control the whole machine

3. Reduce motor separate

UNWINDING PART

1. Single work station

2. Hydraulic clamp,hydraulic lift the material，hydraulic  control the unwinding material width，it can adjust left and right movement.

3. Magnetic powder brake auto tension control

4. Auto web guide

PRINTING PART

1. Pneumatic lifting and lowing printing plate cylinders auto lifting plate cylinder when the machine is stopped. After that can run ink automatically. When the machine is opening,it will make alarm to start the auto lowering plate printing cylinder.

2. Inking with ceramic anilox chambered doctor blade ,ink pump circulation

3. High precision planetary gear oven 360°circulation longitudinal register

4. ±20mm transverse register

5. Adjust inking press and printing pressure press by manual

DRYING PART

1. Adopt with external heating pipe, temperature display, electric current control,centrifugal blower bring the wind

REWINDING PART

1. Back to back rewinding

2. Pneumatic tension control

3. 2.2kw motor，vector frequency conversion control

4. 3 inch air shaft

5. Hydraulic lowering the material
