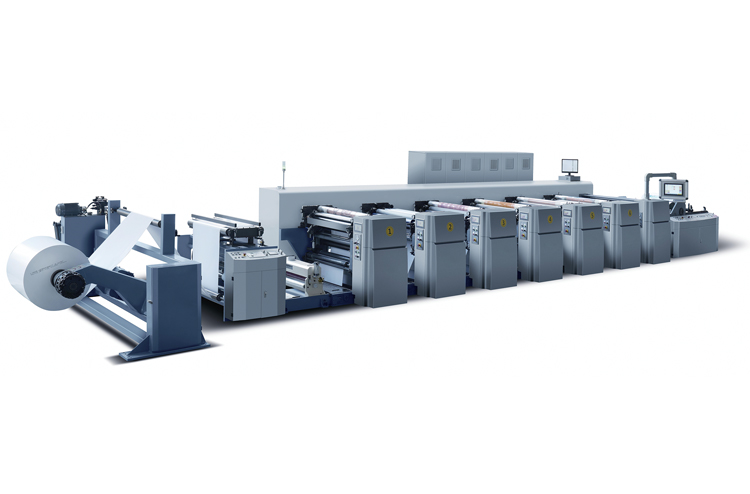

MSRY-CS Flexographic label printing machines are used for high-speed printing of high-quality labels on various substrates such as paper bag, paper cups, and films.
SPECIFICATION:
Specification |
MSRY-CS1020 |
MSRY-CS1120 |
MSRY-CS1220 |
MSRY-CS1320 |
MSRY-CS1350 |
MSRY-CS1450 |
Max. Web Width |
1020mm |
1120mm |
1220mm |
1320mm |
1370mm |
1450mm |
Max. Printing Width |
1000mm |
1100mm |
1200mm |
1270mm |
1350mm |
1430mm |
Printing Repeat |
320-1200mm |
320-1200mm |
320-1200mm |
320-1200mm |
400-1200mm |
400-1200mm |
Max. Unwinder Diameter |
1524mm |
1524mm |
1524mm |
1524mm |
1524mm |
1524mm |
Max. Rewinder Diameter |
1524mm |
1524mm |
1524mm |
1524mm |
1524mm |
1524mm |
Gearing |
1/8cp |
1/8cp |
1/8cp |
1/8cp |
1/8cp |
1/8cp |
Machine Speed |
240m/min |
240m/min |
240m/min |
240m/min |
240m/min |
240m/min |
Diameter Of Web Roller |
100mm |
100mm |
100mm |
100mm |
100mm |
100mm |
Drying Mode |
Hot Air drying + IR drying, UV drying as optional |
|||||
Ink Used |
Water based Ink or UV Ink as optional ( need UV dryer ) |
|||||
MACHINE FEATURE:
1.Sleeve type printing plate roller, convenient and fast plate changing, orders of varying sizes are not restricted;
2.Petal-type structure, stable printing pressure, high-speed work stability;
3.Full servo driven, printing repeat length no limited of teeth pitch, high adaptability;
4.Water-based ink and UV inks are universal, can choose ink types according to the requirements of the printing product, or mix it to adapt to a wider range of printing patterns and printing materials;
5.Digital full inspection and brush code to the plate with preregistration, reduces machine dependence on people with higher yield.
DETAILS:
UNWINDING UNIT
1. Shaftless unwinding unit
2. Unwind unit 60”(1524mm)capacity
3. Mandrel 3” and 6” diameter
4. Hydraulic paper shaft lifting and descending device: mainly used for loading and unloading of paper rollers, no need of forklift or other handling tools
5. Web break sensor, automatically shut down when paper broken
WEB GUIDE SYSTEM
1. Paper Splicing Table: with pneumatic paper holding device.
2. Ball screw electric actuator
3. Adopt the photoelectric sensor for web guide transmission
4. Electronic web guide traction device. If there is any excursion in paper feeding,the system will have a constant and accurate adjustment
5. Adopt closed loop control system to accurately detect the deviation and correct it
6. Hard Anodization to the paper guide HV 800-1000
7. Inspection:the edge
8. Web Guide precision:±0.02mm
IN-FEED TENSION CONTROL UNIT
1. Use the double side pressure rubber roller to clutch and feed paper and to ensure the tension
2. Infeed unit with servo motor drive, epicyclic gear box
PRINTING UNIT (shaftless, single servo motor drive in each station)
1. Servo motor conrtol press cylinder,can realized the pre register function, the anilox roll and printing cylinder are gear box drive
2. Plate cylinders is designed in flower type structure and the plates can be changed without tools and no need adjust the pressure.
3. The machine double sides frame is made of overall alloy and cast iron, which improves the stable performance and durability of the press machine
4. High precision ceramic anilox roll with micro-metric adjustment
5. Automaticc vertical registration.
6. Reversed single doctor blade
7. The anilox and plate cylinders release alternately, transferring residual ink to the paper when machine stop, leaving the printing plates clean and minimizing the need of hand to clean the plates
8. When press stops, the anilox roll continuous running. Hence avoiding permanent damage, which is caused by ink drying on the anilox surface
AUTO REGISTER- CCD Intelligent visual registration system
Intelligent visual registration system is based on machine vision, artificial intelligence and other modern high technology. The whole registering process is done without manual operation, locking, pre-set and fine registering are all executed automatically.
Intelligent visual color register system gets rid of the disadvantages of traditional photoelectric eye color registration and other simple visual color registration such as no automatic pre-set and tedious operation. This system has the significant features of saving manpower, material and time, and high register accuracy, etc. This system can greatly reduce the loss in the printing process, improve product quality, and increase manual production efficiency, etc.
Intelligent visual register system will increase income and reduce expenditure from saving materials and labor costs, improving efficiency and so on. Using a printing press equipped with intelligent vision overprinting will create greater economic benefits for you.
DRYING UNIT
1. Every printing unit has one seperate drying unit
2. High efficiency drying unit including infra red lamps, air blowing/suction system. Air intake adjustable, Air circulation design on the exhaust, the blower is adjustable
3. Short wave infrared heating elements
4. Natural air blowing assembly with exhaust fan
VIDEO WEB INSPECTION SYSTEM
1. Video is high efficency and synchronous, can be moved left and right
2. With 14 inch monitor one pcs
3. one stroboscope lamp It can be enlgared 18 times of image
OUT FEED TENSION CONTROL SYSTEM
1. The rear tension unit is made of alloy and cast iron
2. Use the double side pressure rubber to cluth and feed and to guarantee the stale tension
3. unit with servo motor drive, epicyclic gear box
REWINDING UNIT
1. rewind unit 60’’(1524mm)capacity, with 3’’ shaft,
2. Hydraulic roll lift
3. Web break sensor, automatically shut down when paper broken.
AUTOMATIC LUBRICATING SYSTEM
1. The gear’s automatic dampening system can adjust the lubricating time and ration
2. When the dampening system breaks down or the lubrication is not enough, the indicator will alarm automatically.
PLATE MOUNTER
1. It has a screen including the bilateral symmetrical split screen display
2. It is used for the plate mounting to realize the purpose of multi-color overprinting
3. One set image segmentation device
4. 2 high definition cameras for magnifying
5. Quickly changes the print plates
WEB CLEANER AND ANTI STATIC UNIT
1. To guarantee the cleanness of substrates
2. First remove static, then clean the dust in vacuum and then remove static
CORONA TREATER (OPTIONAL)
To increase ink adhesion to film side of printing materials
