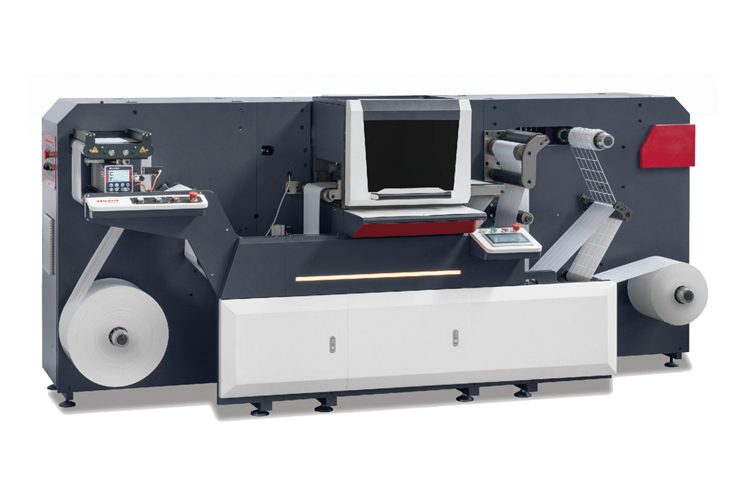

After printing the labels, the flexographic printing machine performs die-cutting according to the design graphics, ensuring precise shaping and finishing.
SPECIFICATION:
Model |
MSMQ350/450 |
Control System |
[Inovance control system] |
Max. Die Cutting Speed |
450 times/min*1 (approx. equals to 130 meters / min) |
Max.Hot Stamping Speed |
150times/min |
Max. Unwinding Diameter |
700mm |
Max. Rewinding Diameter |
700mm |
Max. Width Of Die Cutting |
320mm |
Max. Length Of Die Cutting |
350mm |
Precision Of Web Guiding |
±0.10 mm |
Gross Power |
12kw |
Voltage Of Power Supply |
380V 3P |
Weight |
2000kg |
Dimension(LxWxH) |
3500x1500x1800mm |
Floor Area Required: (LxW) |
5500x4000mm |
MACHINE FEATURE:
●This machine runs with a lnovance servo driver control system and a low-voltage electric appliance of Schneider.
●This machine pulls paper at a uniform speed. and has stable tension.
●lt is highly-automated, high-speed, stable and accurate. sheet cut, hot stamping and die cutting are optional as well.
●The machine is equipped with low-voltage & electric appliance of Schneider.
●This machine runs with an excellent high-end controlling system.
●This machine runs the paper material with uniform speed, and adopts auto tension controlling system, which is very stable.
●The characteristics of this machine are highly-automatic, high-speed, stably-pressured, accurately- positioning.
●Hot stamping &slitting& sheeting are optional configuration for your choice.
